Front axle differential lock indicator switch, location - GF33.40-P-0001-01GB

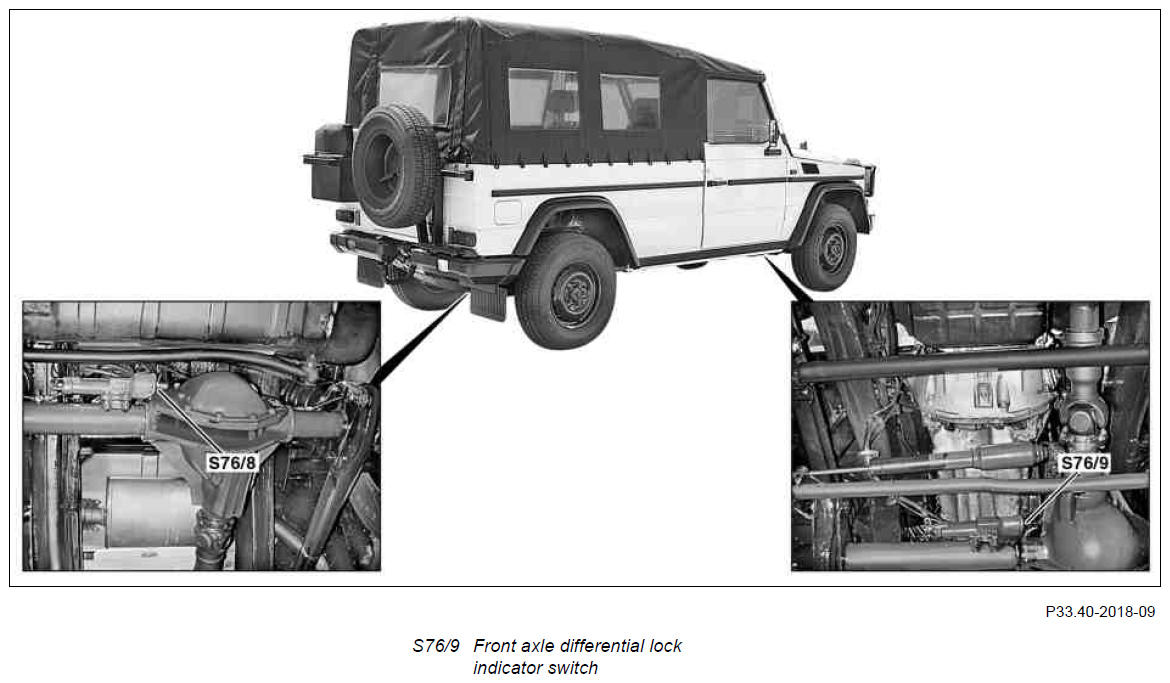

Fig 1: Locating Front Axle Differential Lock Indicator Switch

G07872861

Courtesy of MERCEDES-BENZ USA

Shown on model 461.302
