Belt drives - general - GF13.00-P-9611-01F
Engine 112.945 in Model 463.244/245/250 Engine 113.962 in Model 247/248/249/254

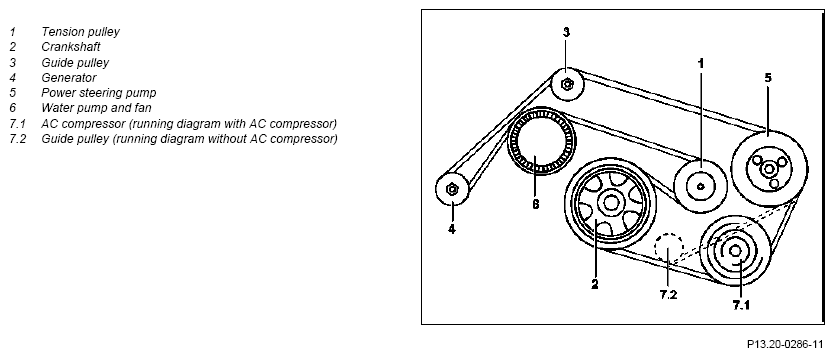

Belt drive
Belt length:
without AC compressor: 2315 mm
with AC compressor: 2390 mm
(as of 4.98 the air conditioning is part of the series in Model 463)
Vehicles without AC have an additional guide pulley (7.2) which is mounted in place of the refrigerant compressor (7.1) The location of the other rollers remains unchanged.
