Refrigerant compressor, position - GF83.55-P-2100-01GB

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2015 Mercedes-Benz G550, 2014 Mercedes-Benz G550, 2013 Mercedes-Benz G550, 2012 Mercedes-Benz G550, and 2011 Mercedes-Benz G550. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 463.323

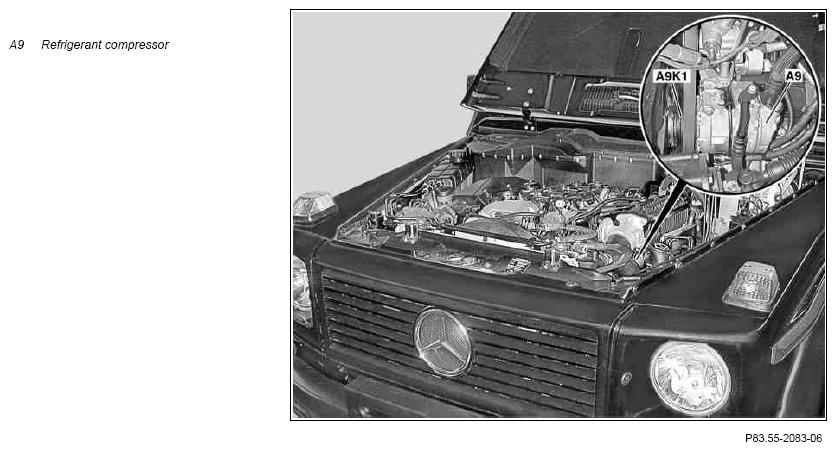

Fig 1: Locating Refrigerant Compressor
G07740614Courtesy of MERCEDES-BENZ USA
