Right antenna amplifier, component description - GF82.62-P-3135G
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2015 Mercedes-Benz G550, 2014 Mercedes-Benz G550, 2013 Mercedes-Benz G550, 2012 Mercedes-Benz G550, and 2011 Mercedes-Benz G550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 463.247 /248 /249 /254 /270 /271 /303 /340 /341 up to 31.8.08
Location

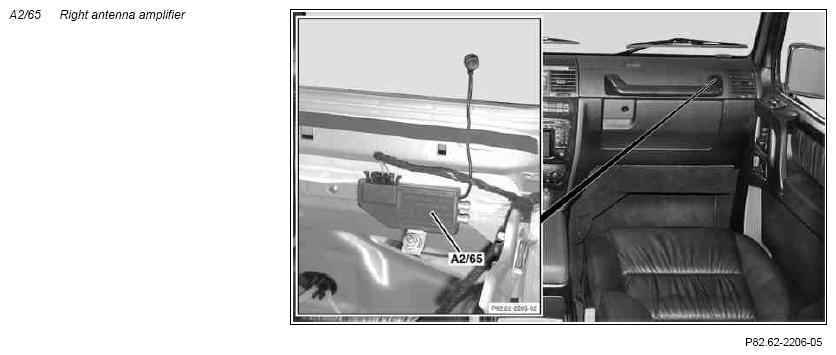

The right antenna amplifier is installed on the crossmember near the right A-pillar.
Tasks
The right antenna amplifier amplifies and filters the radio signals received over the central locking system antenna (A2/34) from the transmitter key (A8/1) and routes the radio signals to the rear signal acquisition and actuation module (SAM) (N10/2).
