Motor electronics (ME-SFI) fuel injection and ignition system control unit output signals - GF07.61-P-0001-07B

Engine 112.945, 113.962

Shown on engine 112.945

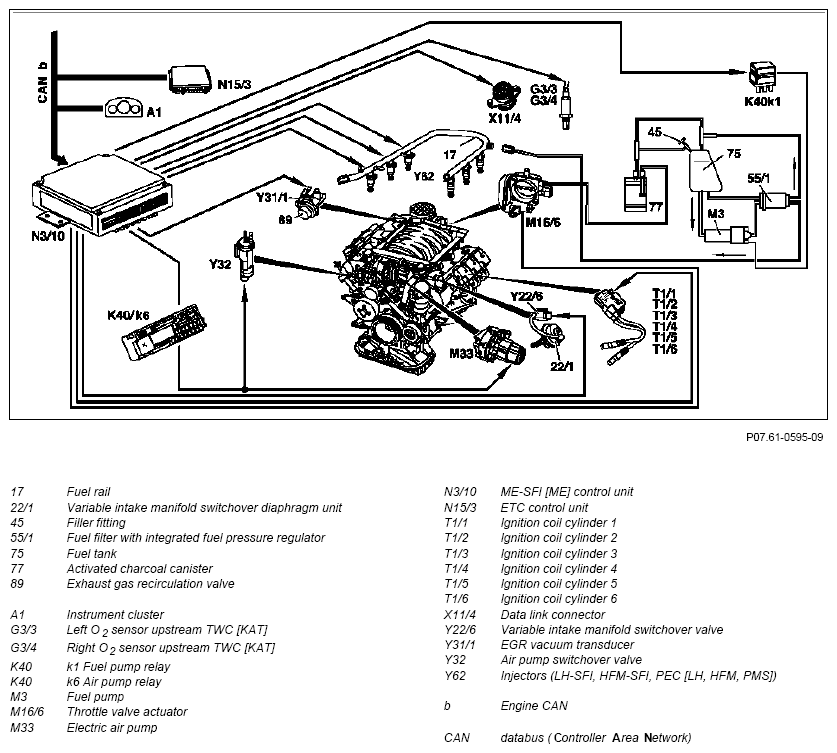

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Control Unit Output Signals Communication Diagram
G07706684Courtesy of MERCEDES-BENZ USA
