Motor electronics (ME-SFI) fuel injection and ignition system arrangement of components - GF07.61-P-0001-01KA

Engine 113.962 in Model 463 up to 30.11.00

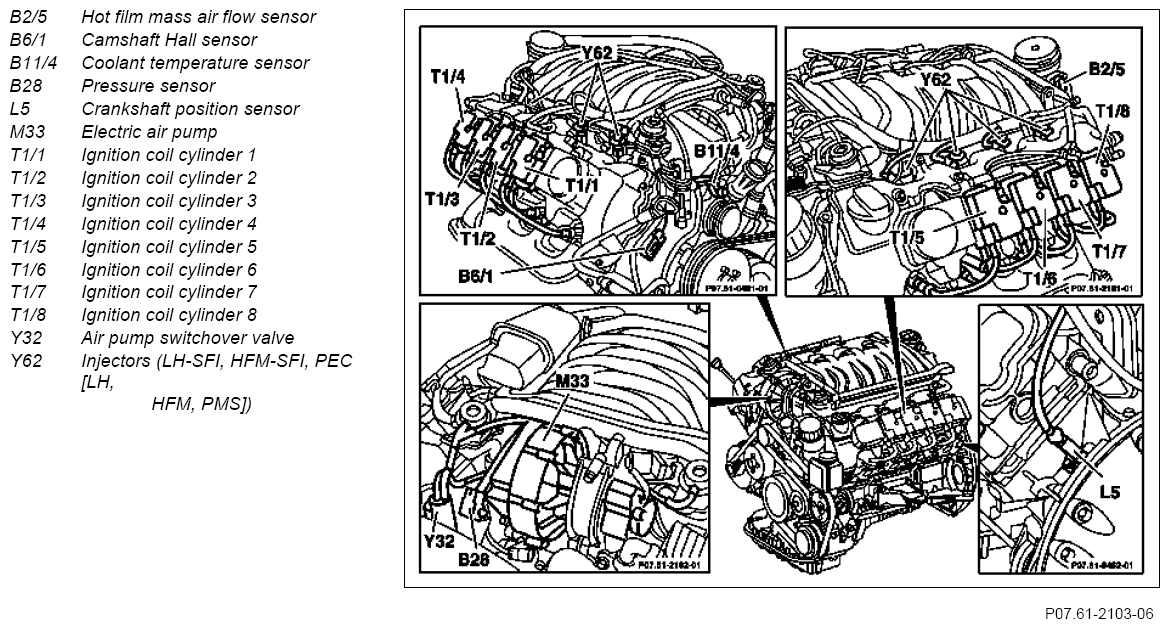

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

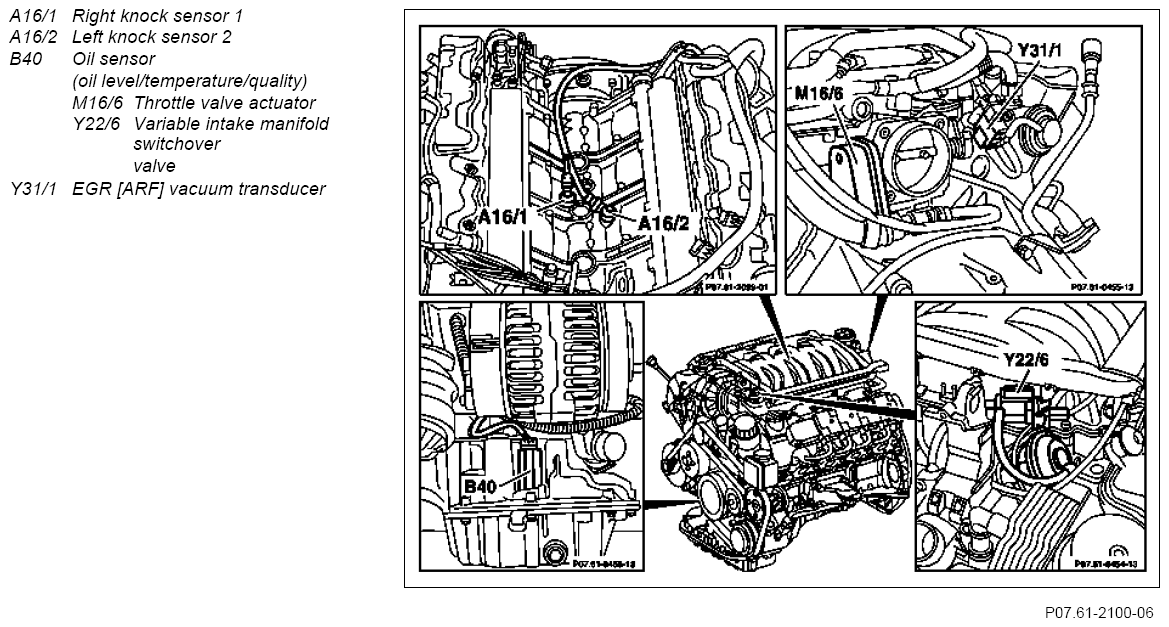

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Control module box of engine compartment

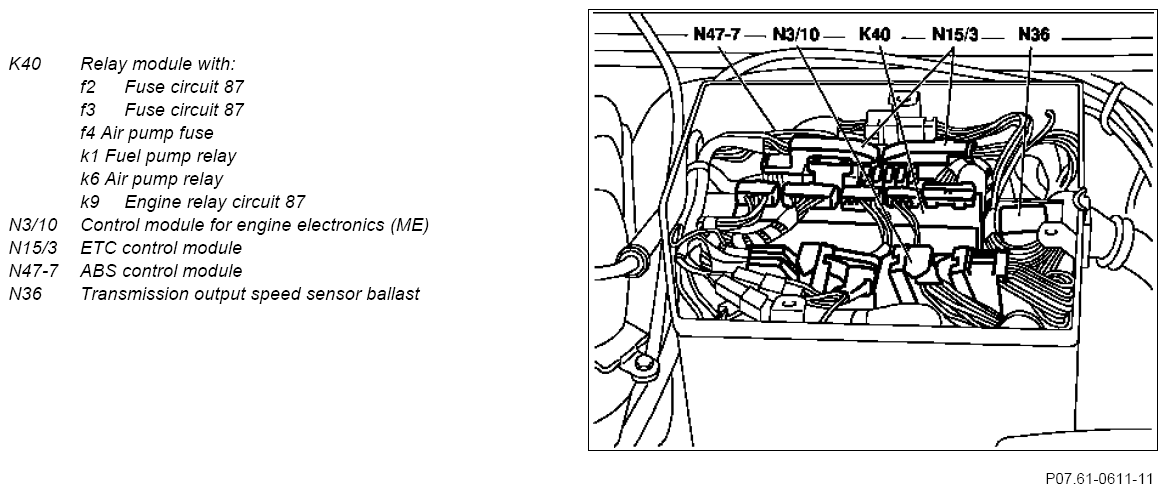

Fig 3: Identifying Engine Compartment Of Control Module Box Components

Courtesy of MERCEDES-BENZ USA

positioned in engine compartment

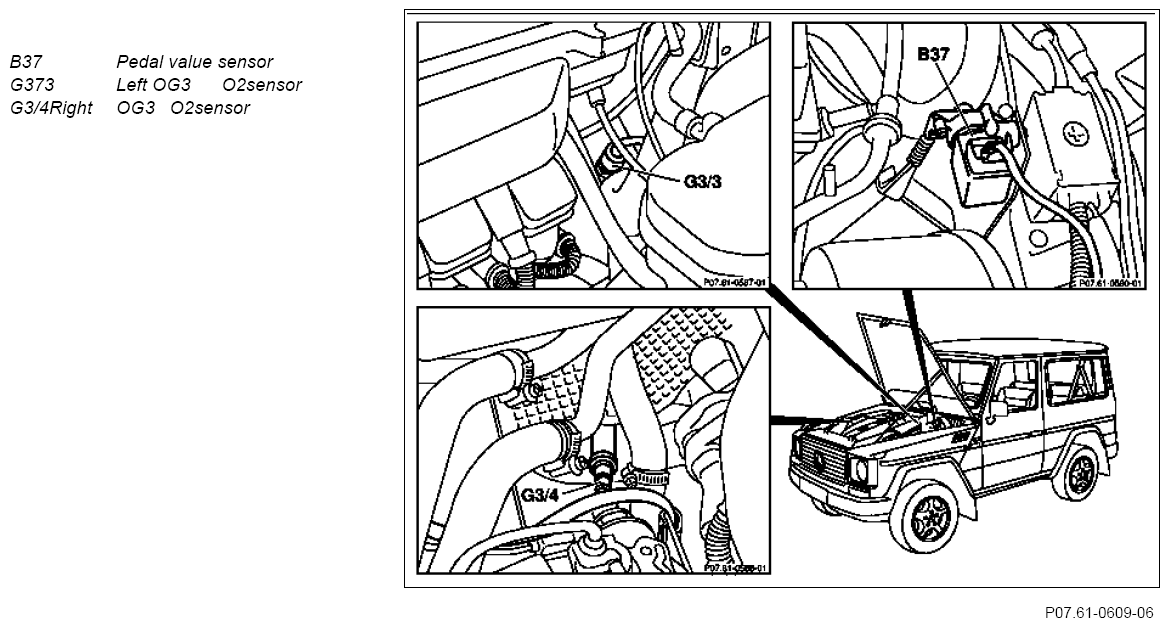

Fig 4: Identifying Engine Compartment Components

Courtesy of MERCEDES-BENZ USA
