Motor Electronics (ME-SFI) for fuel injection and ignition system arrangement of components - GF07.61-P-0001-01AM

Engine 113.990/91/92/93/95

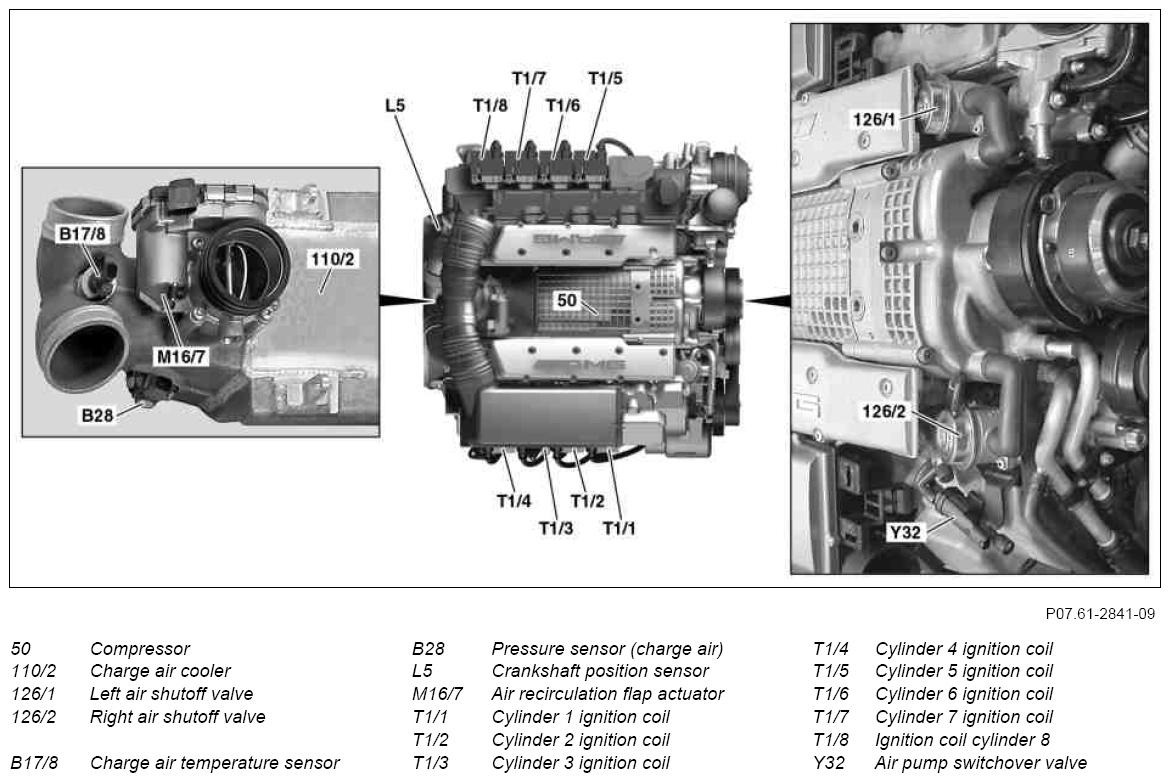

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components (1 Of 2)
G07870910Courtesy of MERCEDES-BENZ USA

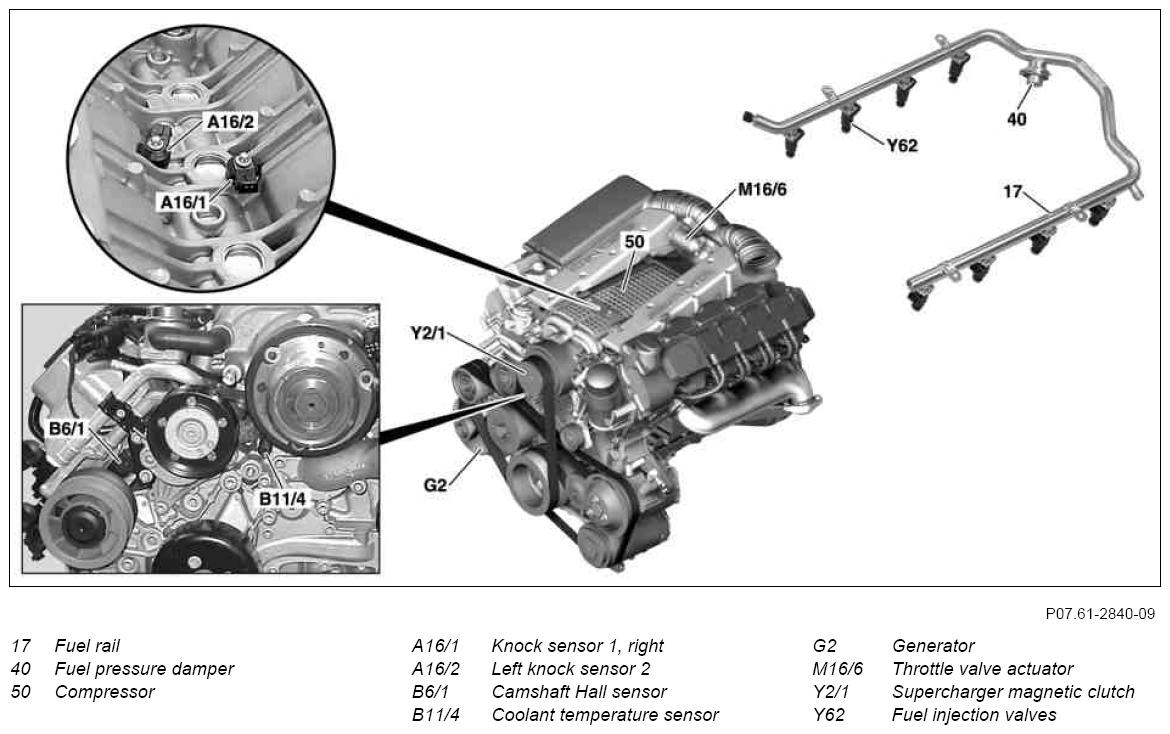

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components (2 Of 2)
G07870911Courtesy of MERCEDES-BENZ USA
