ME-SFI post-start enrichment function - GF07.61-P-3011AM
ENGINE 113.990 in MODEL 211, 219
ENGINE 113.991 in MODEL 215, 220
ENGINE 113.992 in MODEL 230 up to Model Year 2008
ENGINE 113.993 in MODEL 463 up to 31.5.12
ENGINE 113.995 in MODEL 230 up to Model Year 2008

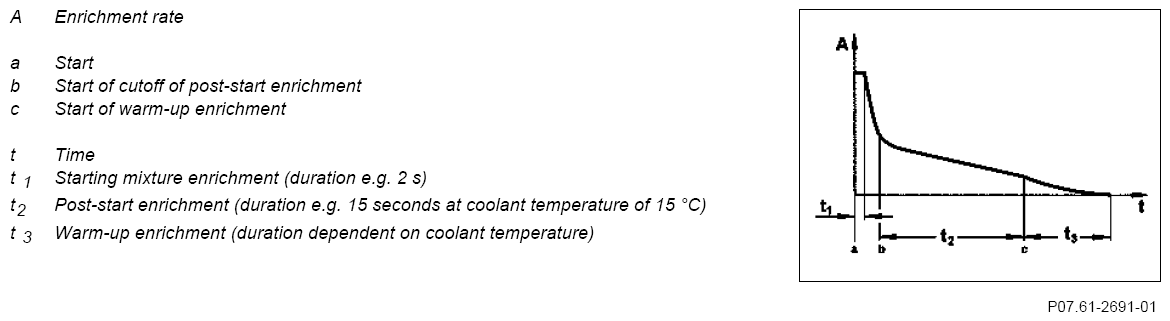

After a cold start the fuel-air mixture is enriched for a short time to ensure that the engine runs smoothly.
Post-start enrichment compensates for the fuel which has precipitated on the cylinder barrels.
The post-start enrichment is dependent on:
- Coolant temperature at start
- Duration after start
- Selector lever position
- Correction programming with STAR DIAGNOSIS

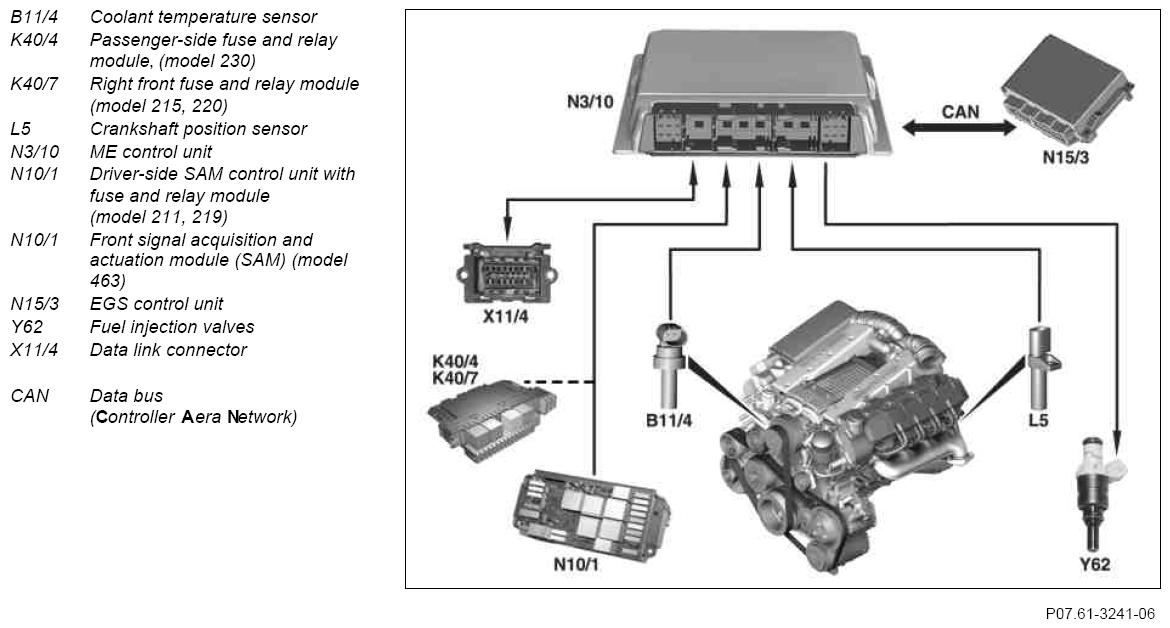

| Fuel injection valve, location/task/design/function | GF07.03-P-5004KE | ||
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116AM | ||
| Coolant temperature sensor, location/task/design/function | GF07.04-P-5026AM | ||
| ME-SFI control unit, location/task/design/function | GF07.61-P-5000AM |
