Exhaust gas recirculation vacuum transducer position - GF07.17-P-3157-02GB

Shown on engine 612.965

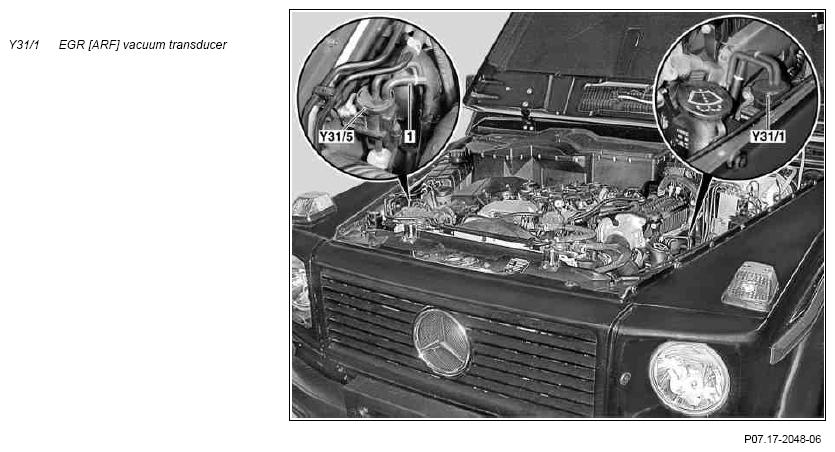

Fig 1: Identifying EGR (ARF) Vacuum Transducer
G07706673Courtesy of MERCEDES-BENZ USA

Shown on engine 112

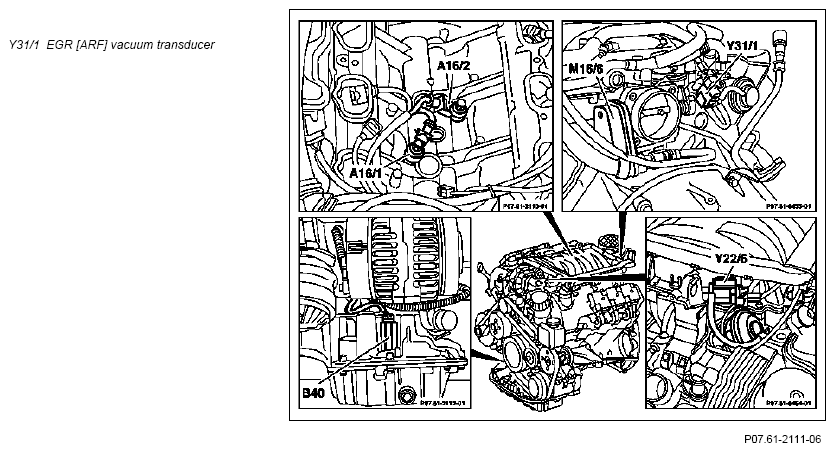

Fig 2: Identifying EGR (ARF) Vacuum Transducer
G07706674Courtesy of MERCEDES-BENZ USA
