Crankcase - general - GF01.40-P-9611-01F
| 15.03.07 | The document has been updated to this date and will no longer be subject to revision. |
Crankcase
Out of aluminum die-casting in open deck version.
Weight: 26 kg (M 104: 55 kg).
Cylinder spacing 106 mm.
Cylinder liners made of newly developed light metal alloy known by the name Silitec (silicone liner technology).

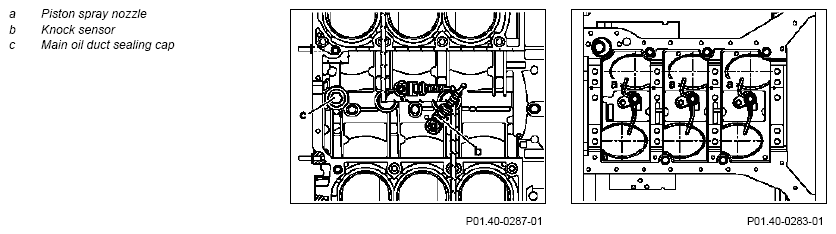

Main oil gallery
With bolted sealing cap in inner V (c).
Knock sensors
One knock sensor (b) installed in the inner V for each bank of cylinders.
