Charge air cooling circulation pump position - GF09.41-P-3102-01GA

Model 463

The charge air cooler circulation pump is located on the right in the engine compartment, below the coolant expansion tank.

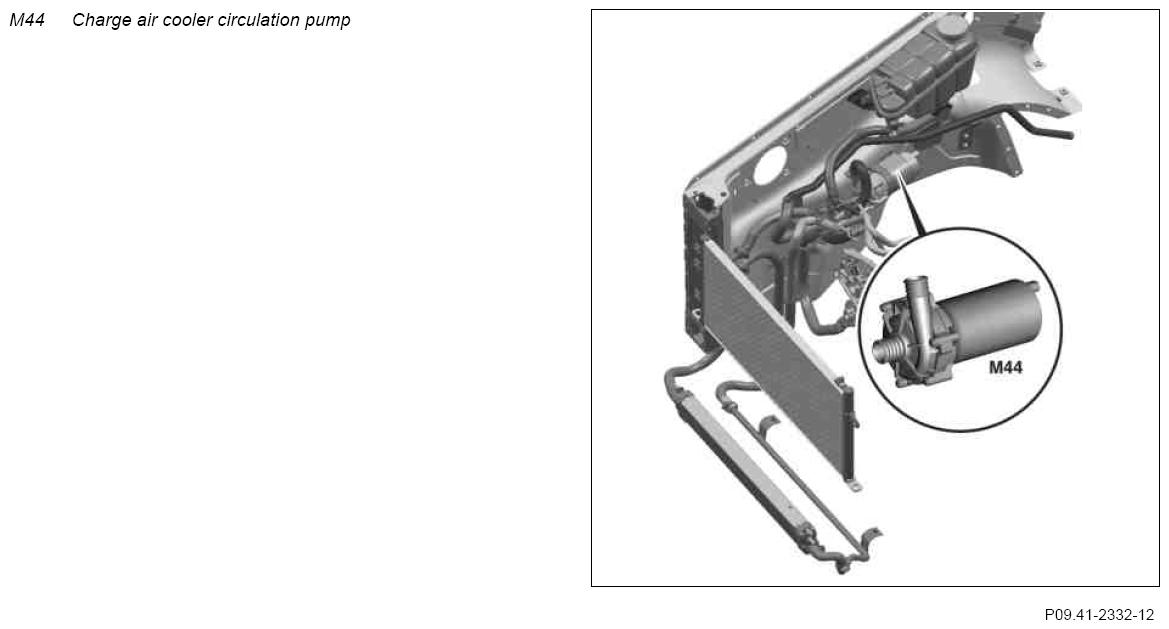

Fig 1: Identifying Charge Air Cooler Circulation Pump
G07871062Courtesy of MERCEDES-BENZ USA
