Remove/install electronic stability program (ESP) control unit - AR42.45-P-0820AA

MODEL 463.244 /245 /247 /250 /254 /309 /332 /333 as of 30.9.01, 463.243 /246 /249 /270 /271 /322 /323

MODEL 463.248 as of 30.9.01 except CODE (979) Special protected version

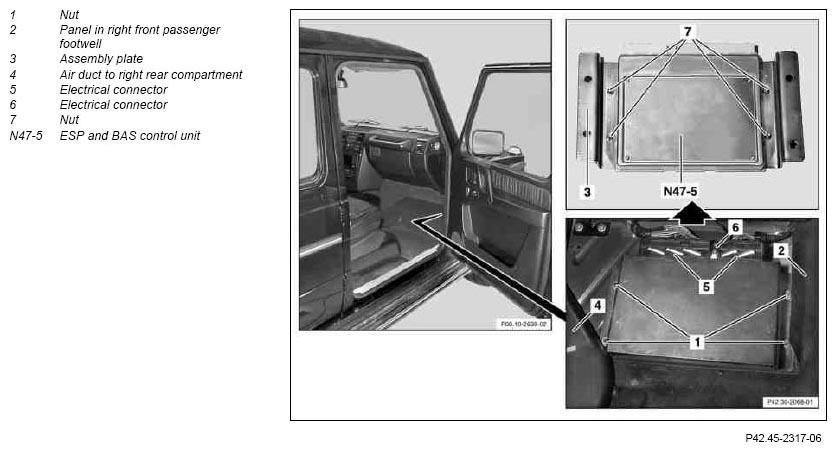

Fig 1: Identifying Electronic Stability Program Control Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Activate Service mode in Tele-Aid emergency call system	Only for model 463.243/244/245/ 247/248/250/270/254/309/322/323/ 332/333 with TeleAid - car telephone emergency call system, code ET2	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/247/248/250/254/270/309/322/323/332/333 with Tele-Aid car telephone emergency call system, code ET2	AH82.95-P-0001-01GA
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground cable		AR54.10-P-0003G
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove right front floor covering
4	Unscrew nuts (1)	If necessary lift panel in right front passenger footwell (2).
5	Remove ESP and BAS control unit (N47-5) with assembly plate (3)	Slightly lift air duct to right rear compartment (4). The control system for the antilock brake system (ABS) is integrated in the ESP and BAS control unit (N47-5).
6	Unlock and unplug connectors (5).
7	Disconnect electrical connector (6)
8	Unscrew nuts (7).
9	Remove ESP and BAS control unit (N47-5) from the assembly plate (3)
10	Install in the reverse order
11	Deactivate service mode in TELE AID emergency call system	Only for model 463.243/244/245/247/ 248/250/270/254/309/322/323/332/333 with TeleAid - car telephone emergency call system, code ET2	AR82.95-P-0005-03GR
	Notes regarding the Tele-Aid emergency call system	Model 463.243/244/245/247/248/250/ 254/270/309/322/323/332/333 with Tele-Aid car telephone emergency call system, code ET2	AH82.95-P-0001-01GA
12	Read out fault memory and erase	When the work is finished, stored faults in the fault memory must be processed and erased. The stored faults can be caused by disconnected lines during assembly or test work as well as by a simulation.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
			*WH58.30-Z-1048-13A
13	Perform a function test		*WH58.30-Z-1048-13A
