Parameter Steering Valve (All Models)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1995 Mercedes-Benz SL600, 1995 Mercedes-Benz SL500, 1995 Mercedes-Benz SL320, 1994 Mercedes-Benz SL600, and 1994 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

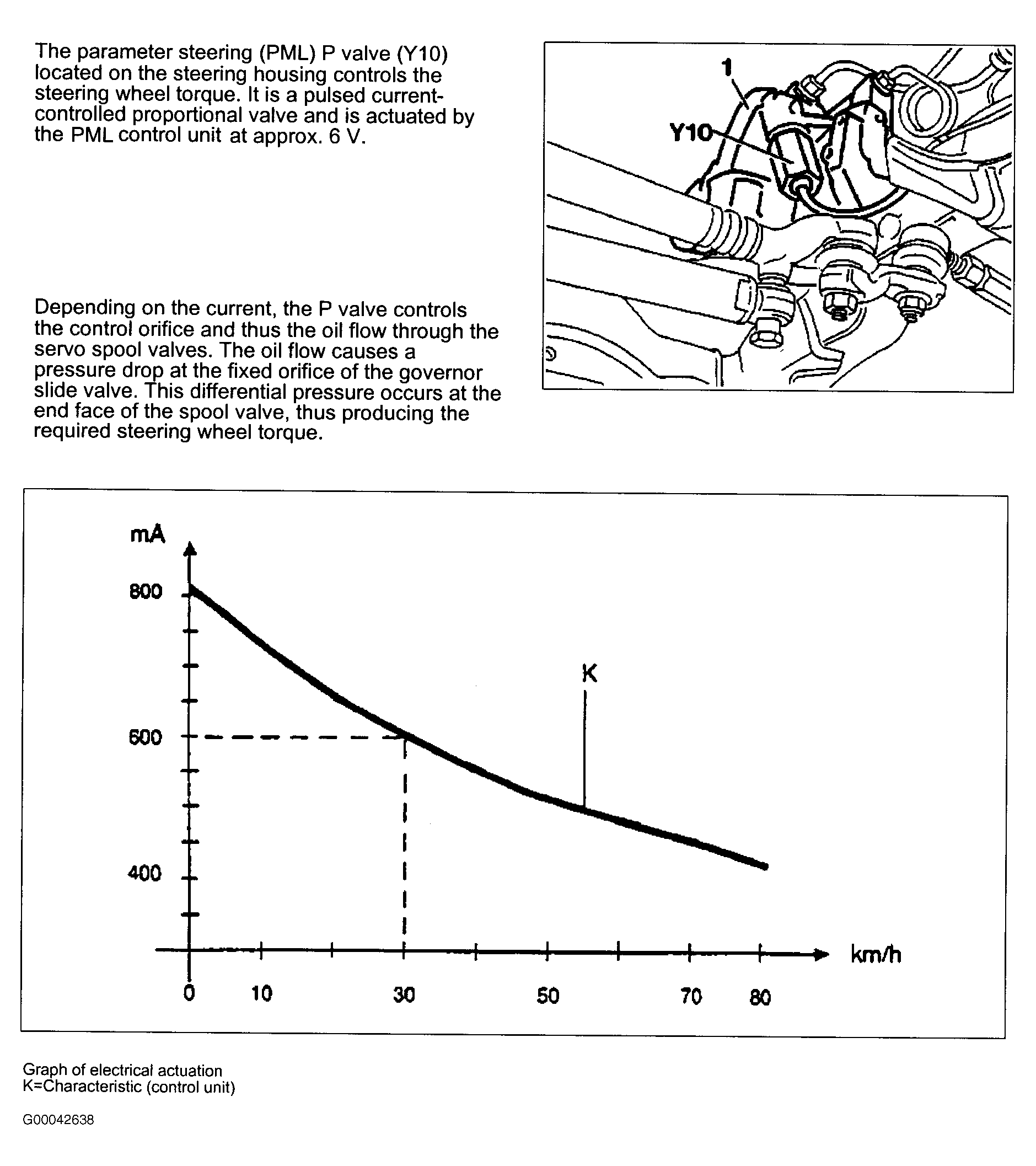

Fig 1: Parameter Steering Valve (1 Of 2)
G00042638Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

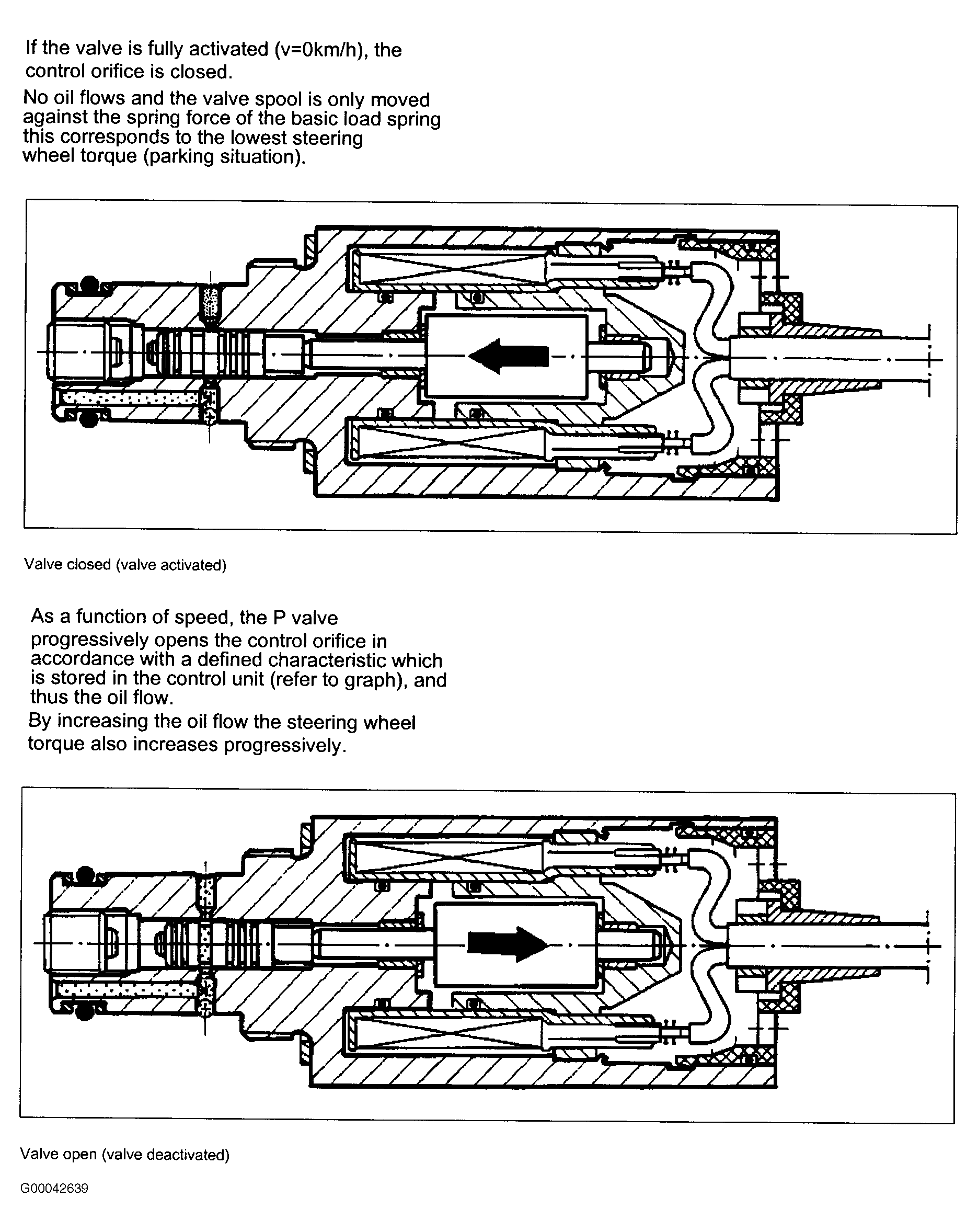

Fig 2: Parameter Steering Valve (2 Of 2)
G00042639Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
