Automatic Transmission System Hydraulic Diagrams

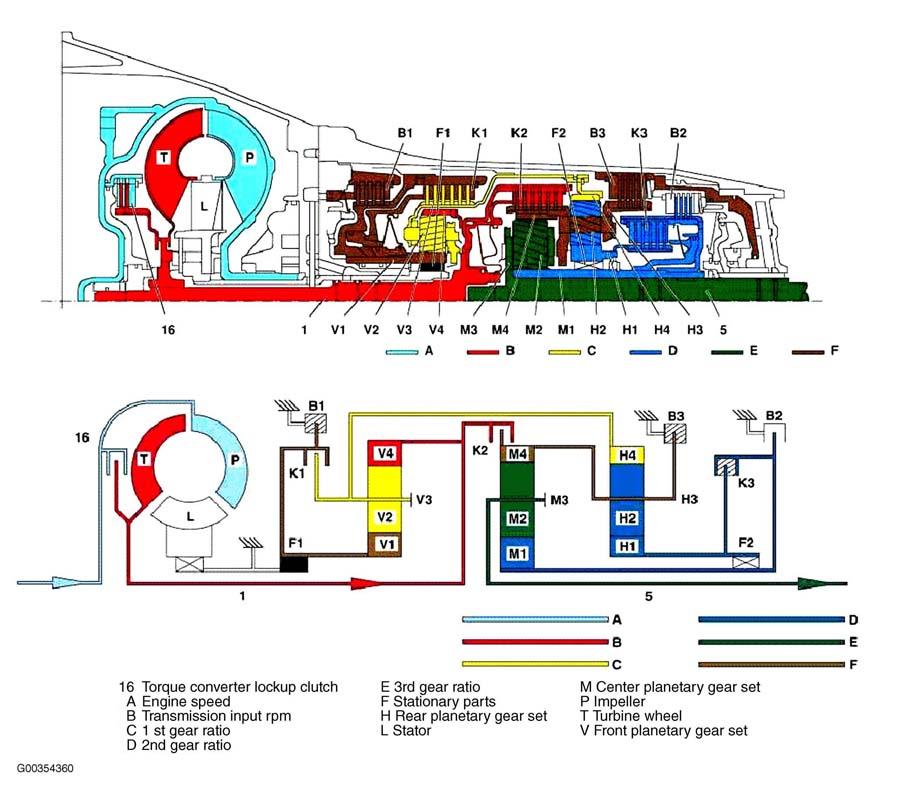

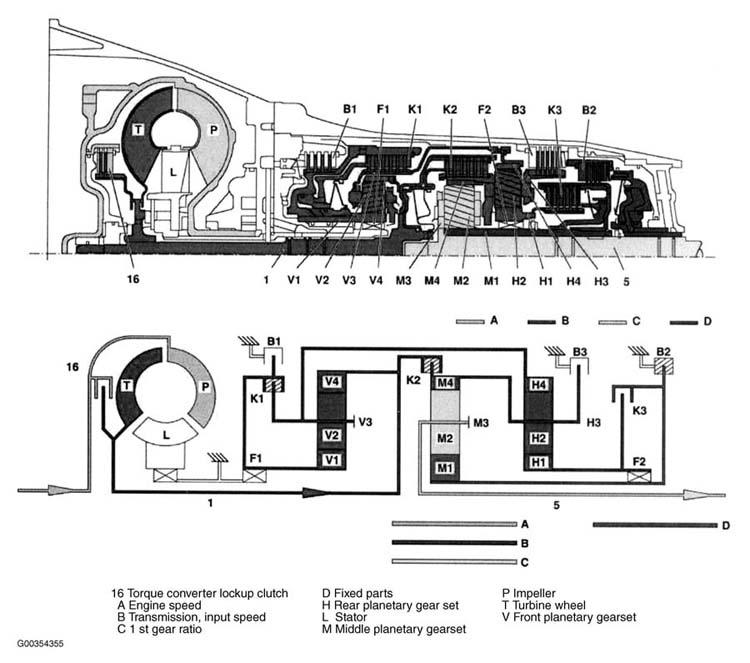

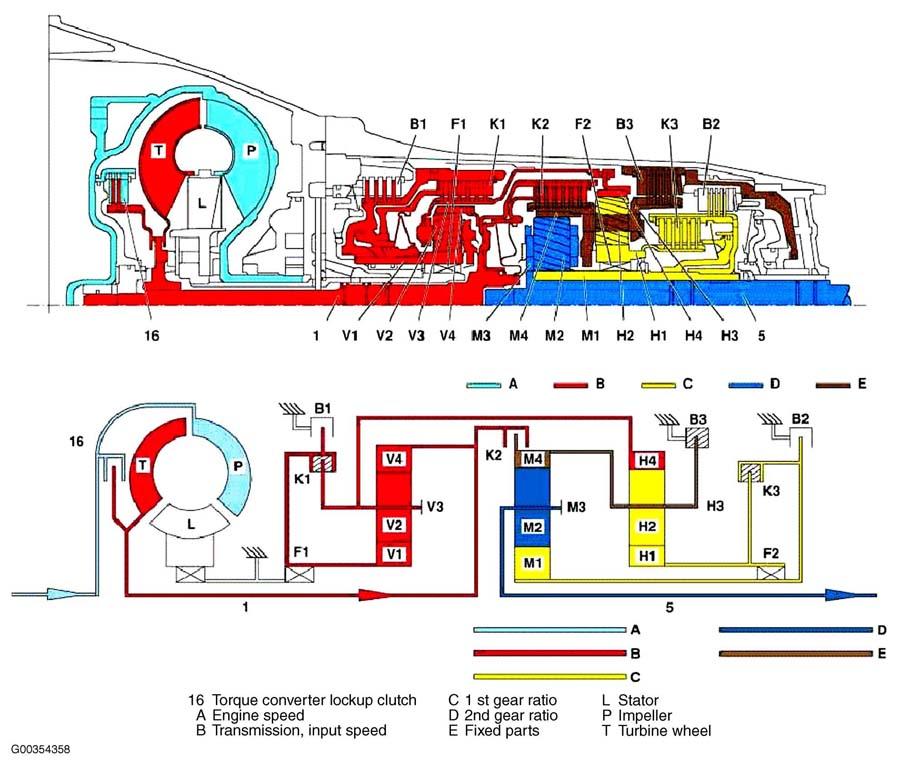

Fig 1: Power Flow In 1St Gear, Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

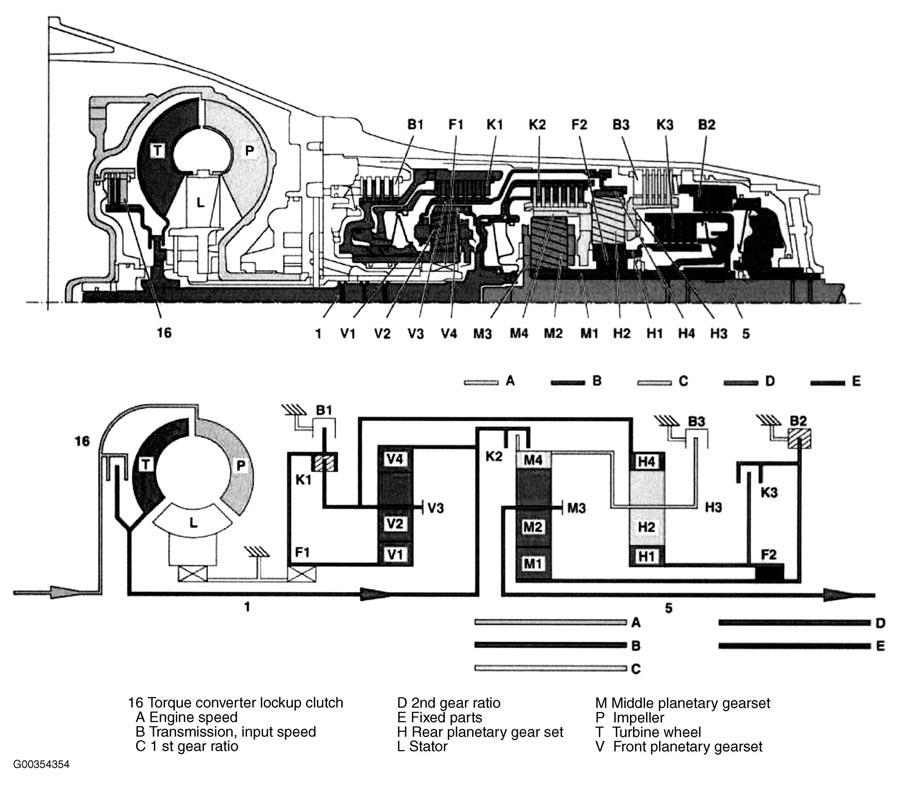

Fig 2: Power Flow In 2nd Gear Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

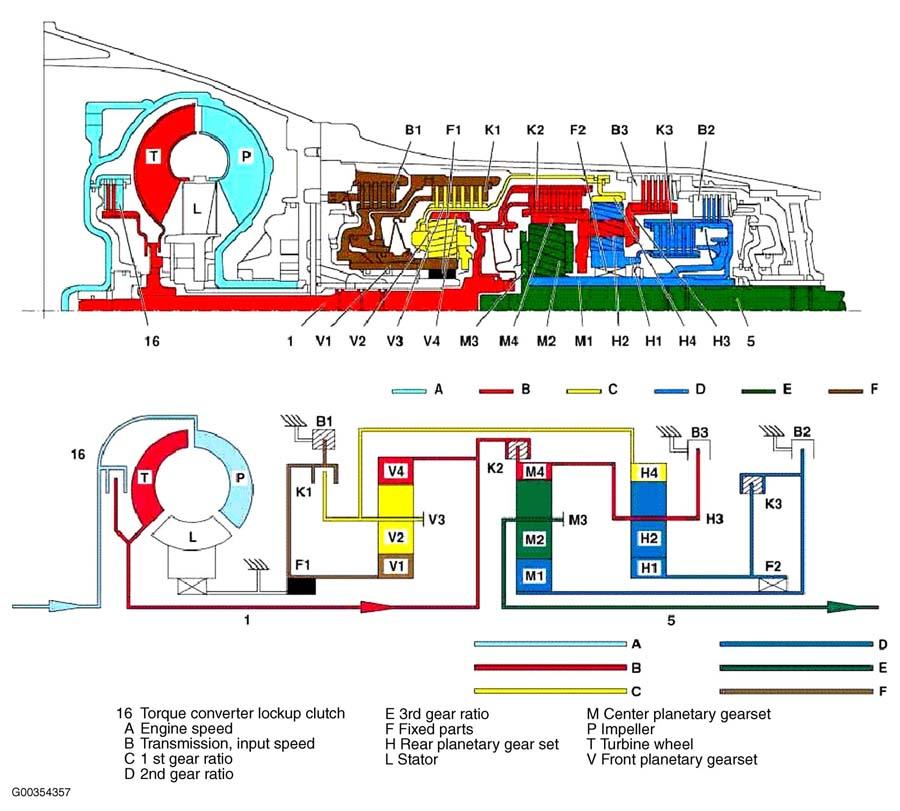

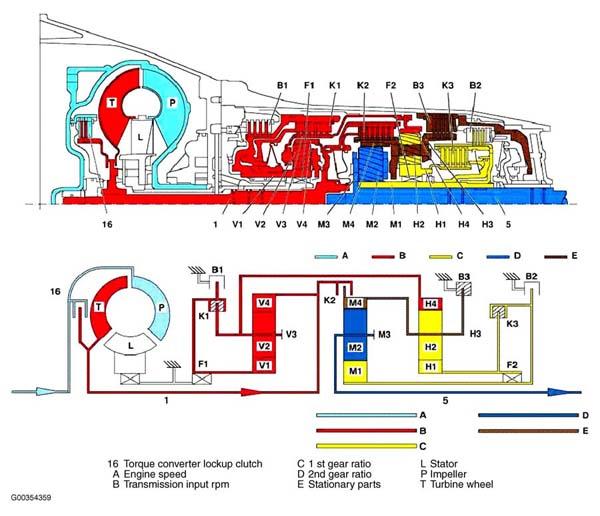

Fig 3: Power Flow In 3rd Gear Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

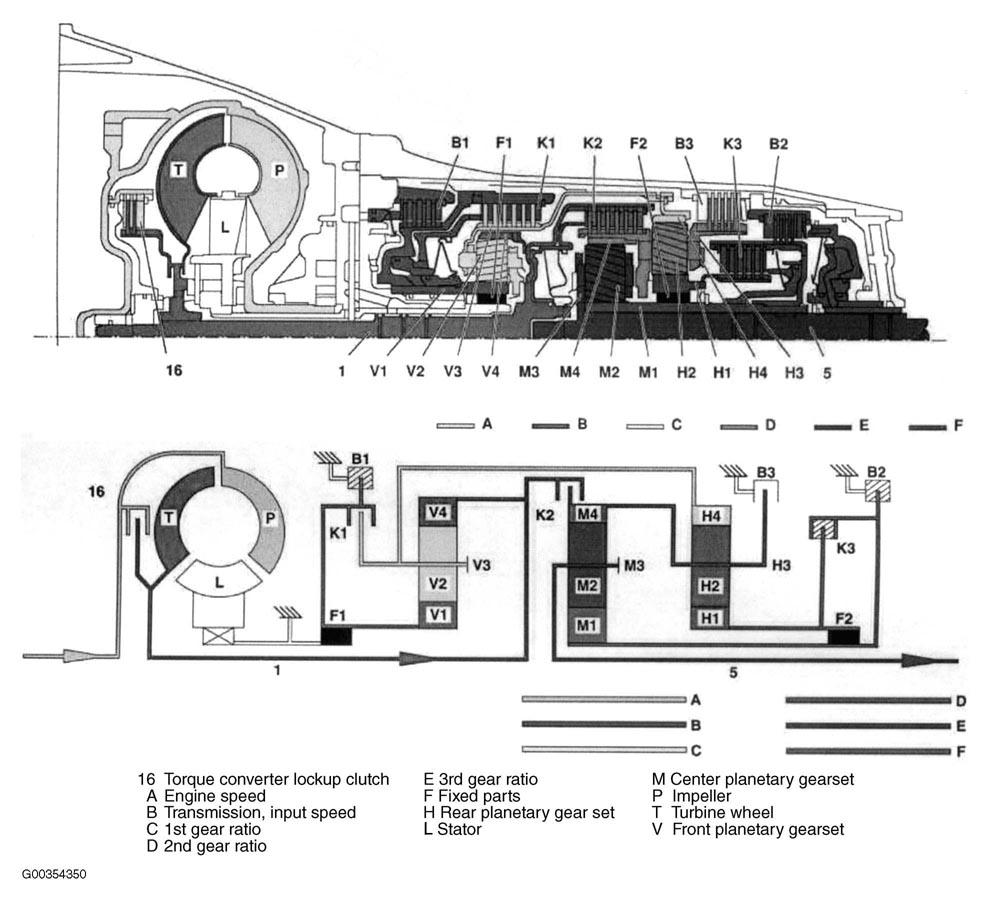

Fig 4: Power Flow In 4th Gear Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

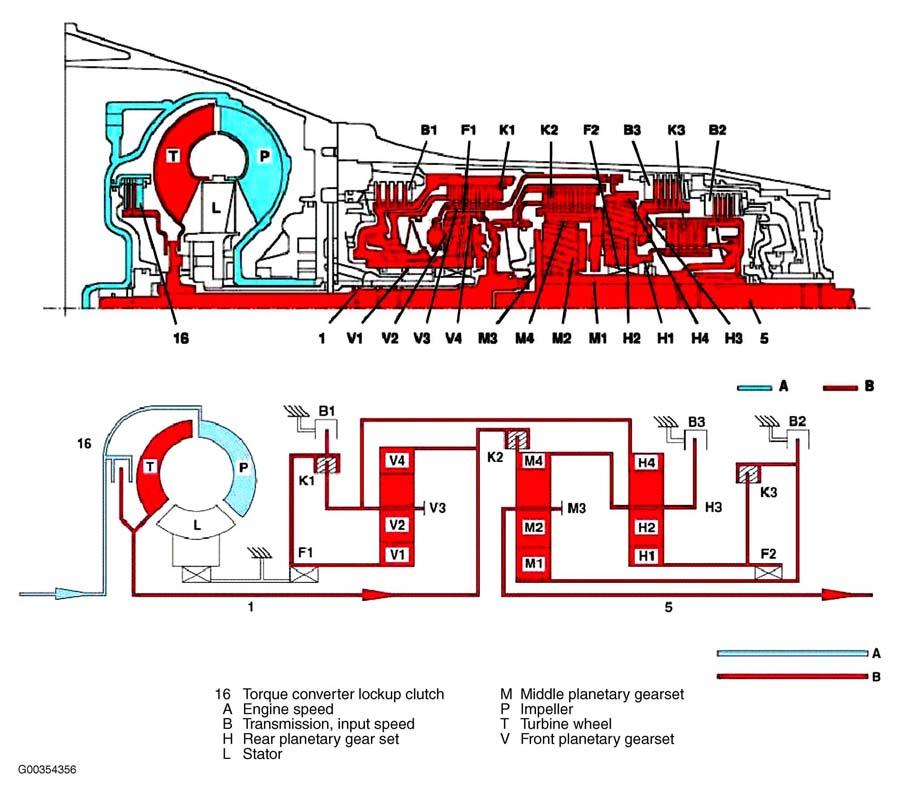

Fig 5: Power Flow In 5th Gear Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Power Flow In Reverse Gear, Program Selection "W", Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Power Flow In Reverse Gear, Program Selection "C", Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Function Of Power Flow In Reverse Gear Function Of Program Selection "S"

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

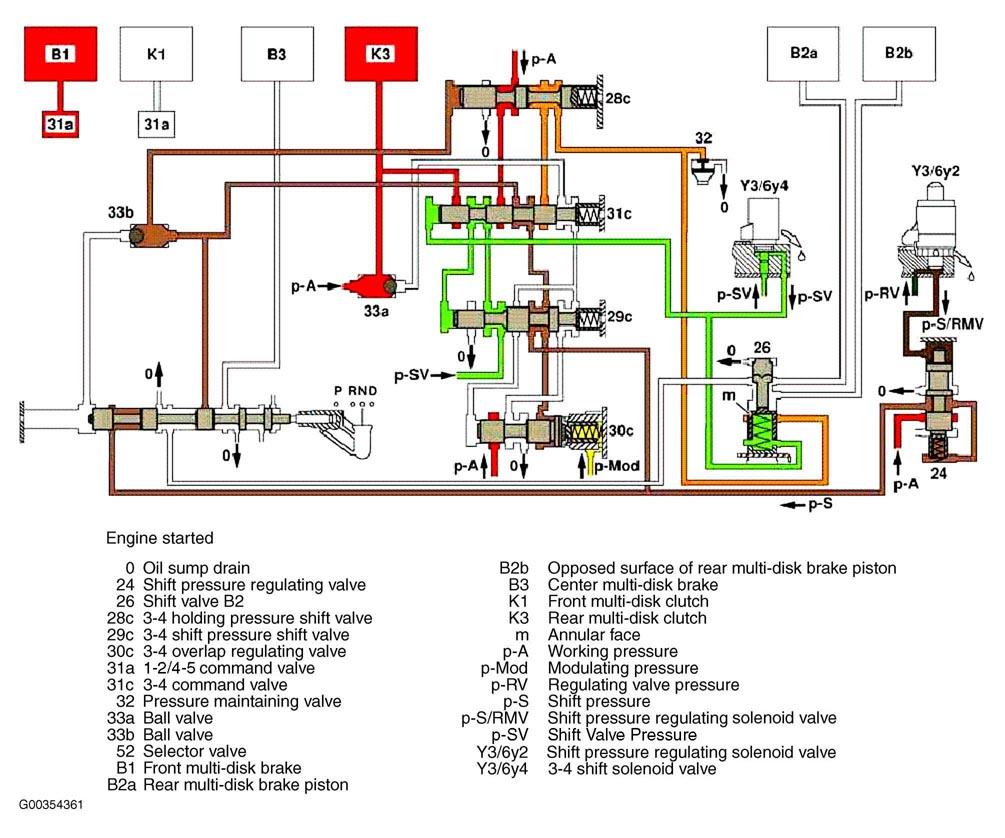

Fig 9: Shifting N To D (1st Gear), Function (Engine Started)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

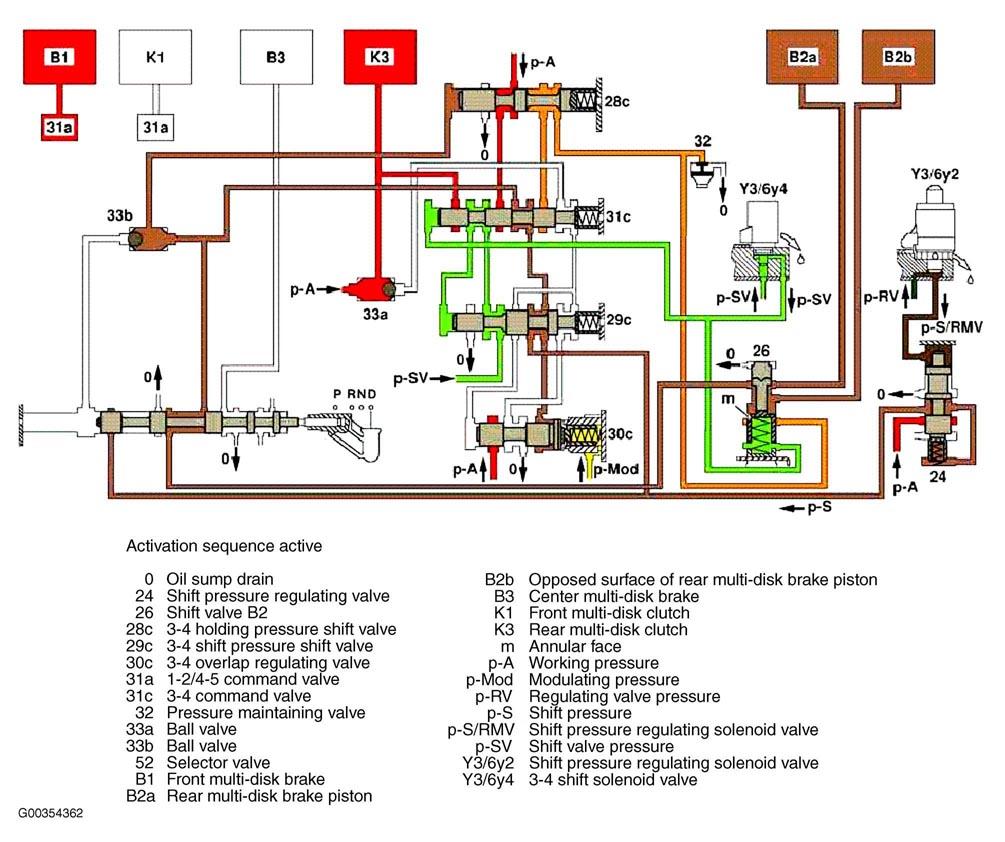

Fig 10: Shifting N To D (1st Gear), Function (Activation Sequence Avtive)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

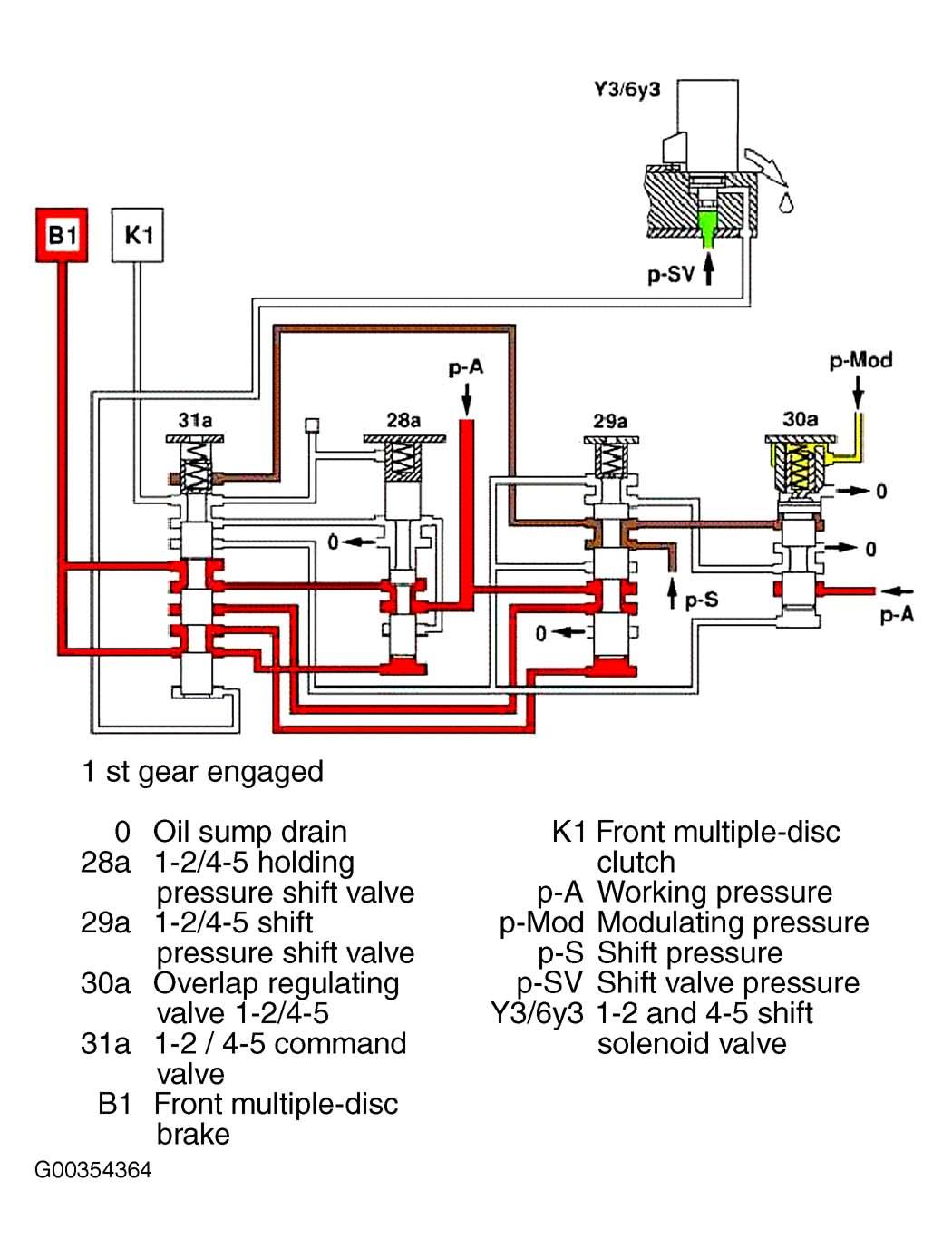

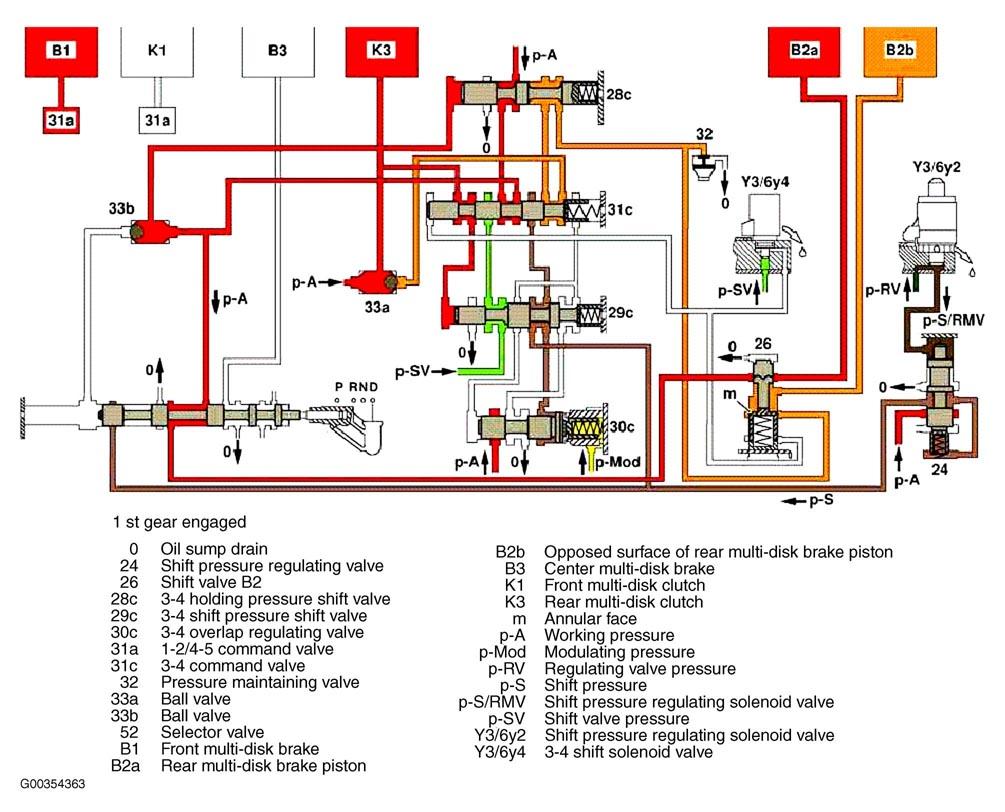

Fig 11: Shifting N To D (1st Gear), Function (1St Gear Engaged)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Shift From 1 To 2, Function (1st Gear Engaged)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

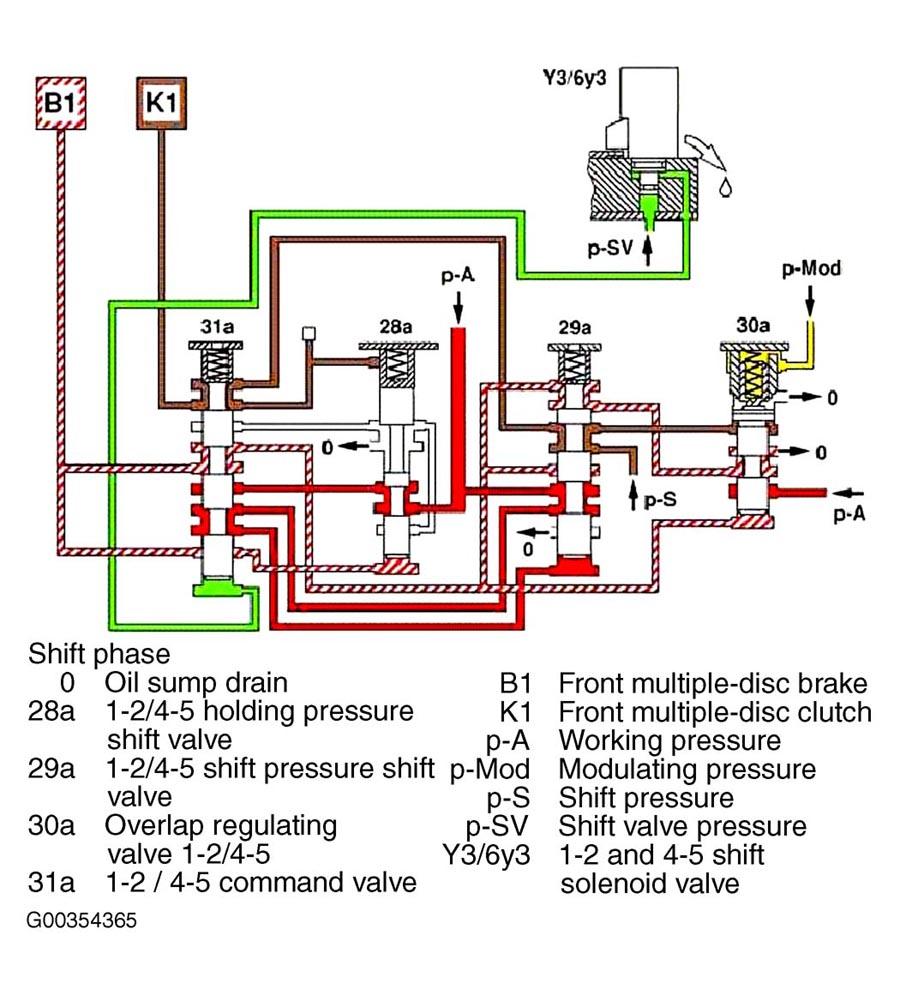

Fig 13: Shift From 1 To 2, Function (Shift Phase)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

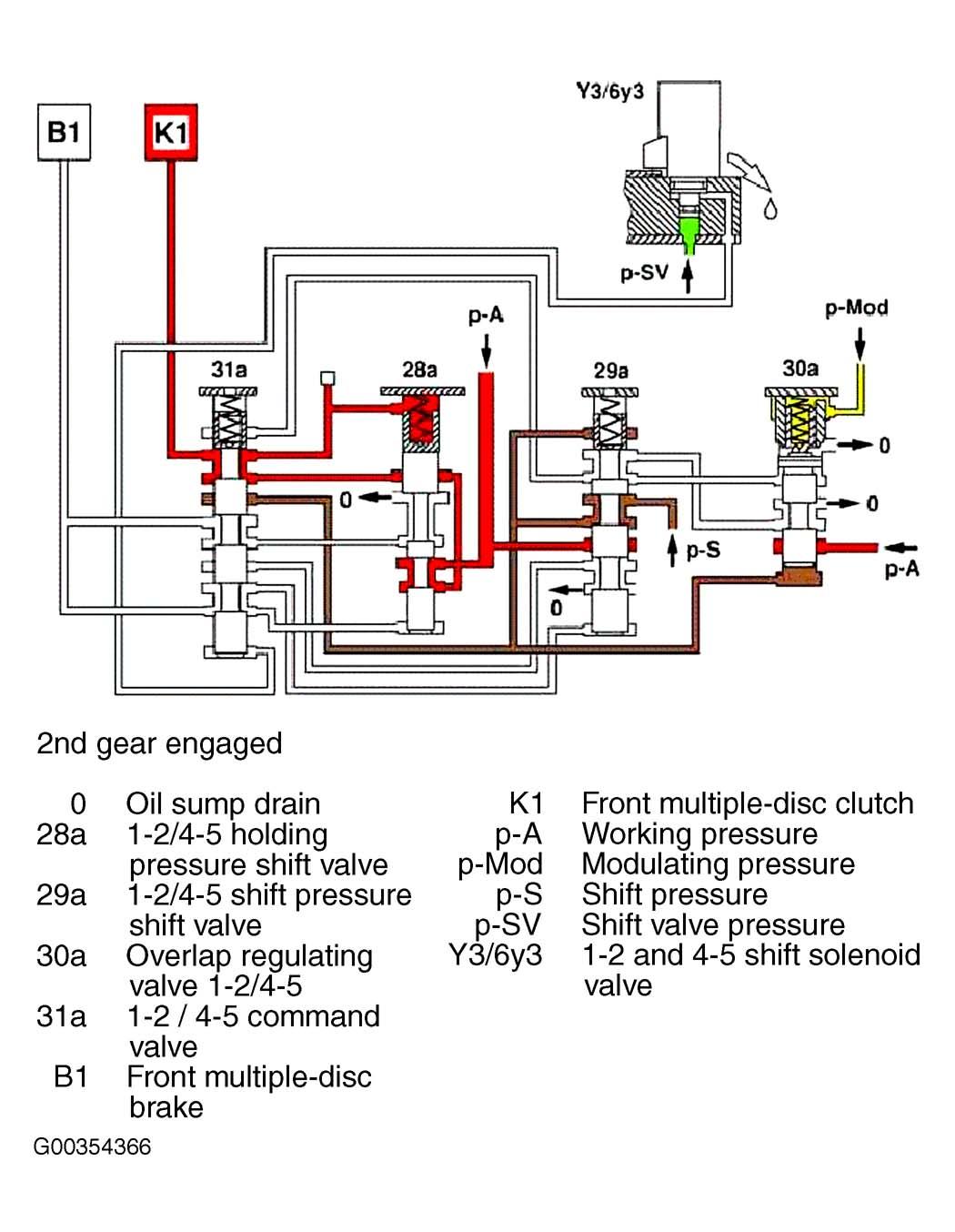

Fig 14: Shift From 1 To 2, Function (Second Gear Engaged)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
