Removing and installing head restraint guides on front seats - AR91.16-P-0050B
MODEL 210
with CODE (221a) left front power seat
with CODE (222a) right front power seat
| Removal, installation | |||

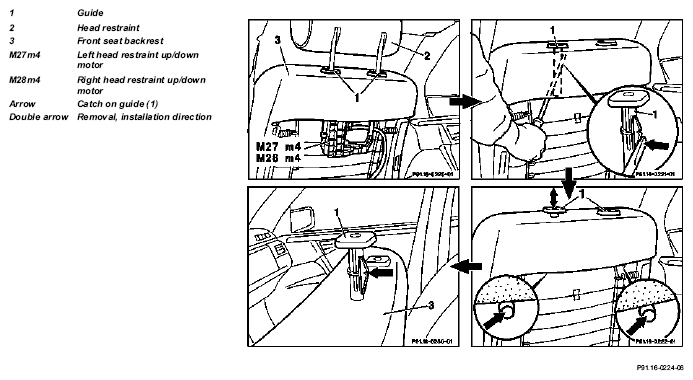

| 1 | Remove head restraint (2) | ||
| 2 | Remove tensioning element on front seat backrest | ||
| 3 | Remove head restraint motor | AR91.29-P-1430F | |
| 4 | Press catch (arrow) on guide (1) with screwdriver and pull guide (1) up and out. | ||
| 5 | Insert guide (1) carefully into backrest frame with catch (arrow) pointing toward rear | ||
| 6 | Catch guide (1) in backrest frame | ||
| 7 | Continue to reinstall in opposite order |
