Retrofitting pressure reservoir and pneumatic lines - AN91.25-P-0001-06A

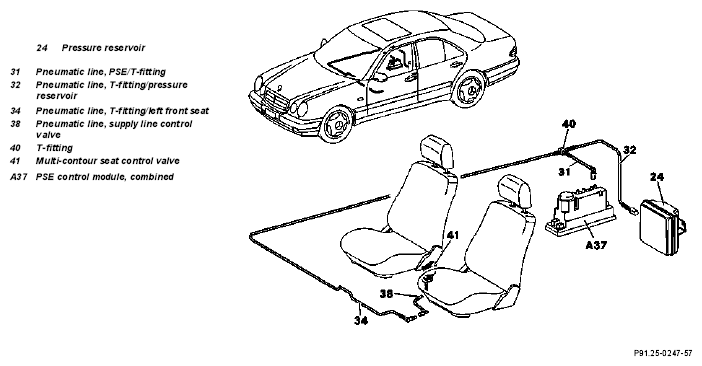

Pneumatic line routing for left multi-contour seat

Fig 1: Identifying Retrofitting Pressure Reservoir And Pneumatic Lines (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

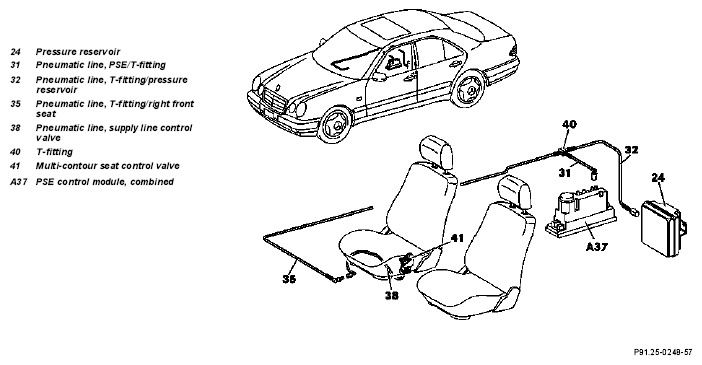

Pneumatic line routing for right multi-contour seat

Fig 2: Identifying Retrofitting Pressure Reservoir And Pneumatic Lines (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

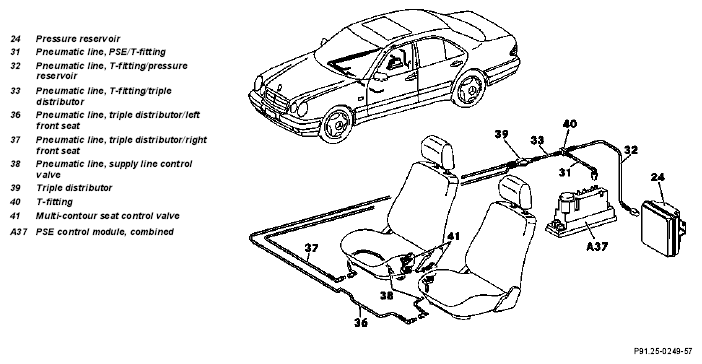

Pneumatic line routing for left and right multi-contour seats

Fig 3: Identifying Retrofitting Pressure Reservoir And Pneumatic Lines (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Clip pressure reservoir (24) into retaining lug on rear fuse box.
   Fig 4: Identifying Clip Pressure Reservoir Into Retaining Lug On Rear Fuse Box

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Route supply line below seat so that a free length of approx. 370 mm is present beginning at the exit point from the carpeting.
   Fig 5: Identifying Seat Free Length Of Present Beginning At Exit Point From Carpeting

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
