Retrofitting oddments box on driver's seat - AN91.10-P-0001B

MODEL 210 with CODE (450) Taxi version with CODE (682) Fire extinguisher

The oddments box can be mounted on the fire extinguisher present on the front seat cushion frame of the left front seat using the mounting bracket.

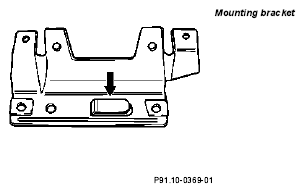

Fig 1: Locating Mounting Bracket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

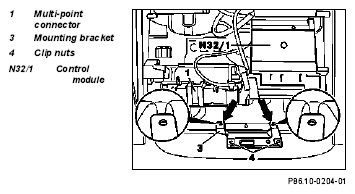

Fig 2: Locating Mounting Bracket, Multi-Point Connector And Clip Nuts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

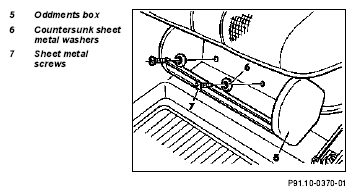

Fig 3: Identifying Oddments Box, Countersunk Sheet Metal Washers And Sheet Metal Screws

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
1	Release left front seat and tilt toward rear
2	Remove fire extinguisher together with mount on left front seat
3	Remove mounting bracket (3) and bend lug (arrow) back in vise
	Installation
4	Attach mounting bracket (3) to left front seat cushion frame
5	Mount oddments box (5) on mounting bracket (3) with countersunk sheet metal washers (6) and sheet metal screws (7)	Use present clip nuts (4) on mounting bracket (3).
6	Attach left front seat
7	Mount fire extinguisher on right front seat		AN86.10-P-0001A

The parts required for installation are listed in the following parts documents:
