Retrofitting driver's backrest air cushion - AN91.25-P-0001-01A

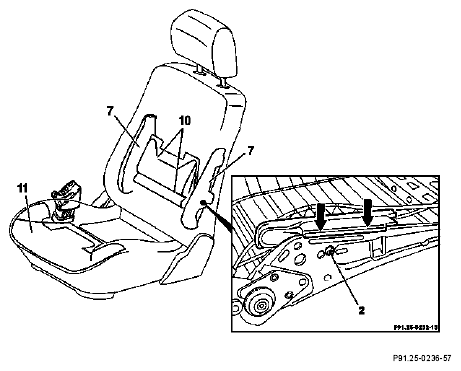

Attach side retention air cushion (7) to backrest frame on left and right (arrows) and fasten with Torx screw (2).

Fig 1: Identifying Retrofitting Driver's Backrest Air Cushion Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fasten pad (10) with air cushion to front of backrest frame. For this purpose bend perforated lower end (3) toward rear and fold around bottom wire strap.
Press punched mounting lug (4) through hole in part folded over.
Bend mounting lug (5) to rear.

Fig 2: Identifying Fasten Pad With Air Cushion To Front Of Backrest Frame
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Hook triple distributor (6) into mounting lugs (5).
Connect pneumatic lines of side retention air cushion (7).
Connect transparent supply line (8).

Fig 3: Identifying Hook Triple Distributor Into Mounting Lugs And Pneumatic Lines Of Side Retention Air Cushion
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cut out shaded area in rubberized fiber matting on left and right.

Fig 4: Identifying Shaded Area In Rubberized Fiber Matting On Left And Right
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fasten front seat backrest cover on rubberized fiber matting and cut into Velcro strip (1) at upper edge of cutout.

Fig 5: Identifying Fasten Front Seat Backrest Cover On Rubberized Fiber Matting And Cut Into Velcro Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fold bottom end of rubberized fiber matting (tabs) around wire strap on backrest frame (arrows).
Do not pinch pneumatic lines (9).

Fig 6: Identifying Fold Bottom End Of Rubberized Fiber Matting (Tabs) Around Wire Strap On Backrest Frame
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
