Retrofitting control valve on front seat - AN91.25-P-0001-04A

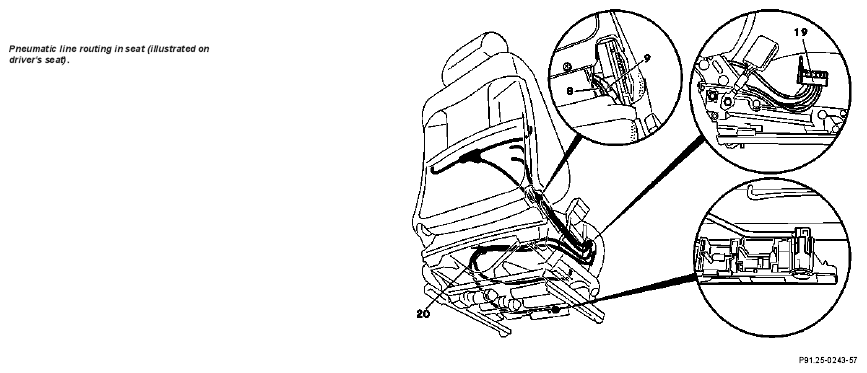

Route pneumatic lines to holder (19) according to drawing and fasten with straps (20).

Fig 1: Identifying Retrofitting Control Valve On Front Seat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Clip pneumatic connectors into holder (19).
Attach control valve (41).

Fig 2: Identifying Clip Pneumatic Connectors Into Holder And Control Valve
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
