Preparing seat cushion for seat cushion depth adjustment - AN91.25-P-0001-02A

Position seat cushion depth adjustment air cushion (11) in center of rubberized fiber matting and align (see figure for dimensions).
The supply line (arrow) should always lead through the hole (13) in the rubberized fiber matting on the inside of the vehicle and not be kinked.
Fasten seat cushion depth adjustment air cushion (11) with clips (12) to rubberized fiber matting.
When pushing the clips (12) through do not damage the supply line (arrow) or the seat cushion depth adjustment air cushion (11).

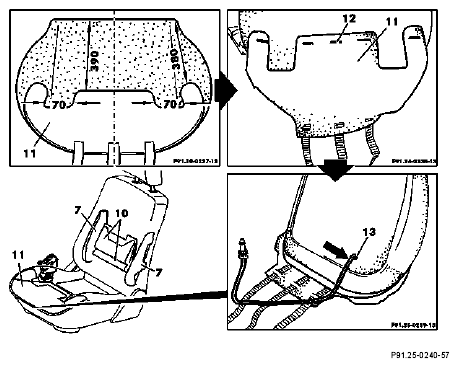

Fig 1: Identifying Preparing Seat Cushion For Seat Cushion Depth Adjustment
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shorten clips (12) on rear of rubberized fiber matting to approx. 10 mm and bend over.

Fig 2: Identifying Shorten Clips On Rear Of Rubberized Fiber Matting And Bend Over
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue felt strip (14) over bent over clips.

Fig 3: Identifying Glue Felt Strip Over Bent Over Clips
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
