Fabricating pneumatic lines - AN91.25-P-0001-05A

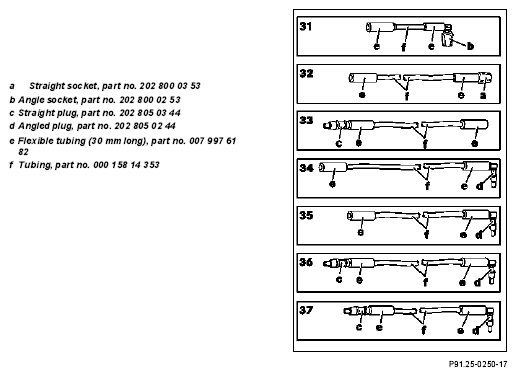

- Fabricate pneumatic lines according to drawing depending on installation version.
See also table below.
Fabricating pneumatic lines according to table
| Line no. | Pneumatic line from | to | Length in mm |
|---|---|---|---|
| 31 | Pneumatic control module | T-fitting | 230 |
| 32 | T-fitting | Pressure supply reservoir | 670 |
| 33 | T-fitting | Triple distributor (left and right multi-contour seats) | 150 |
| 34 | T-fitting | Left front seat (left multi-contour front seat only) | 2820 |
| 35 | T-fitting | Right front seat (right multi-contour front seat only) | 1800 |
| 36 | Triple distributor | Left front seat (left and right multi-contour front seats) | 2620 |
| 37 | Triple distributor | Right front seat (left and right multi-contour front seats) | 1600 |
