Removing/installing the rear engine mount - AR22.10-P-1160HB

ENGINE 606.961 in MODEL 140

ENGINE 111 in MODEL 170

ENGINES 111, 604, 605 in MODEL 202

ENGINES 111, 602.982, 604, 605, 606.912 /962 in MODEL 210

ENGINE 111 in MODEL 208

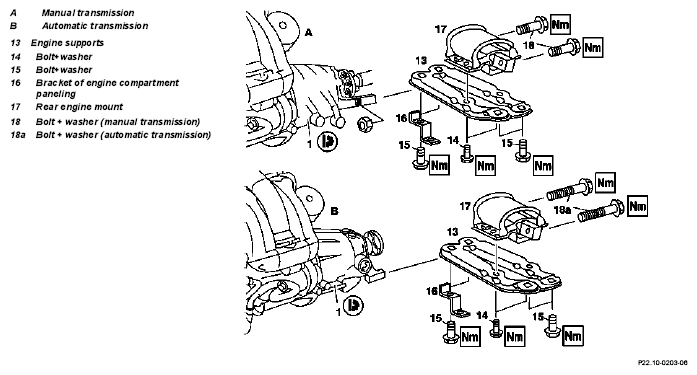

Fig 1: Identifying Rear Engine Mount Components (Engine 111, 602, 604, 605, 606)

	Removing/installing
1	Support transmission (1)
2	Unbolt engine cross member (13) at rear	Models 140, 170, 202, 208	*BA22.10-P-1002-01A
			*BA22.10-P-1003-01A
			*BA22.10-P-1002-01D
			*BA22.10-P-1003-01D
		Model 210	*BA22.10-P-1002-01A
			*BA22.10-P-1003-01A
			*BA22.10-P-1002-01D
			*BA22.10-P-1003-01D
			*BA22.10-P-1011-01J
			*BA22.10-P-1012-01J
3	Unbolt engine mount (17) and remove	Models 140, 170, 202, 208 Note the installation position!	*BA22.10-P-1006-01A
			*BA22.10-P-1006-01D
		Model 210	*BA22.10-P-1006-01A
			*BA22.10-P-1006-01D
			*BA22.10-P-1005-01J
4	Install in reverse order

Engine suspension, engine mounts, engine supports

Number	Designation		Engine 111 in models 170, 202, 208	Engine 111 in model 210
BA22.10-P-1002-01A	Bolt for rear engine mount on rear engine crossmember	Nm	25	30
BA22.10-P-1003-01A	Bolt for rear engine crossmember on body	Nm	40	40
BA22.10-P-1006-01A	Bolt or nut, rear engine mount on transmission	Nm	40	40

Engine suspension, engine mounts, engine supports

Number	Designation		Engines 604, 605, 606 in model 210	Engine 605, 606 in model 124	Engine 606.961 in model 140
BA22.10-P-1002-01D	Bolt for rear engine mount on rear engine crossmember	Nm	30	25	25
BA22.10-P-1003-01D	Bolt/nut for rear engine crossmember on body	Nm	40	40	40
BA22.10-P-1006-01D	Bolt or nut for rear engine mount on transmission	Nm	40	70	50

Engine mounts, engine supports

Number	Designation		Engine 602.982 in model 210
BA22.10-P-1005-01J	Nut/bolt for rear engine mount on transmission	Nm	40
BA22.10-P-1011-01J	Bolt for rear engine mount on rear engine crossmember	Nm	30
BA22.10-P-1012-01J	Bolt for rear engine crossmember on body	Nm	40
