Template of rear skirt cutout AMG muffler system - AZ49.10-P-0001-01A

Model 210 MB - standard rear skirt

Template

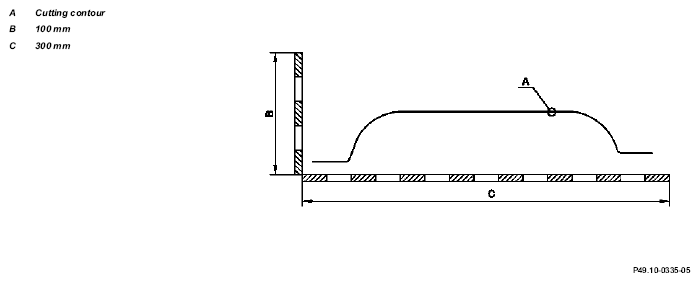

Fig 1: Identifying Template Of Rear Skirt Cutout Amg Muffler System

Procedure

• 1 Print out template
• 2 Measure dimension "B" and dimension "C" on printout
• 3 Determine factor (e.g. 300 mm (dimension "C" on printout)
• 4 Copy template using factor calculated Dimension "B" and dimension "C" must correspond to the dimensions specified above
