Instrument cluster (IC) arrangement of components - GF54.30-P-0002-04M

Model 210

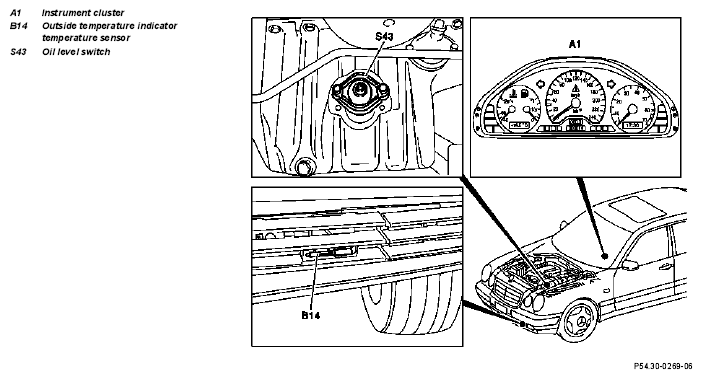

Fig 1: Identifying Outside Temperature Indicator Temperature Sensor And Oil Level Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

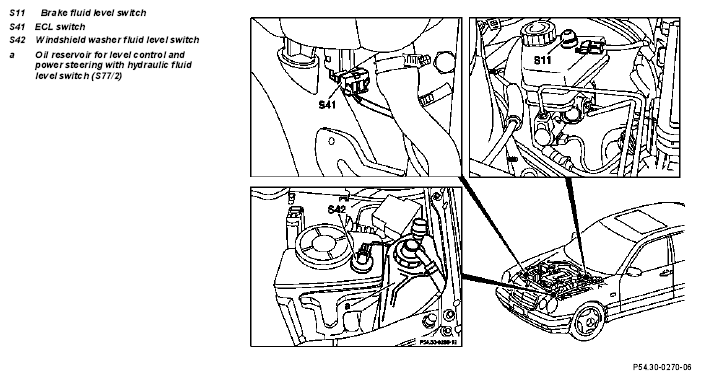

Fig 2: Identifying Brake Fluid Level, ECL And Windshield Washer Fluid Level Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

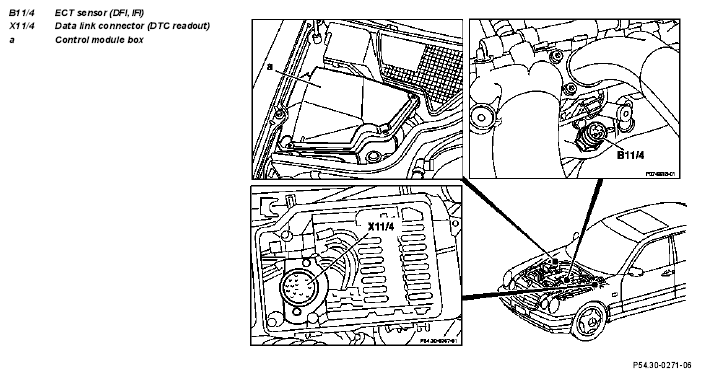

Fig 3: Identifying ECT Sensor, Data Link Connector And Control Module Box

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

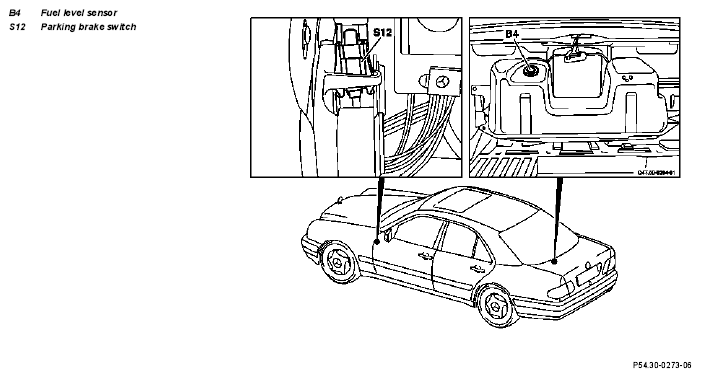

Fig 4: Identifying Fuel Level Sensor And Parking Brake Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Phototransistor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Hydraulic Fluid Level Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
