Upholstery filling of seat modified - BT91.18-P-0001-01F

MODEL 210 as of 1.9.98

As of 9/98, when replacing seat covers ensure that modified seat covers are fitted. With previous versions the upholstery filling is stuffed into pockets in middle area of seat cover and stuck to seat matting in side area. Owing to a technical development, on the new version upholstery filling is sewn directly to seat cover across the whole width. Sticking upholstery filling to seat matting in side area therefore no longer applies.

Modification of seat covers affects all model 210 vehicles with Elegance and Avantgarde equipment lines, material and leather versions.

Not affected are all rear seat cushions with optional extra ICS (Integrated Child Seat) on Limousine and T-model, as well as third rear seat row of T-model.

NOTE: In future, previous seat covers (1) and matting (4, 5 and 6) will not be available as replacement parts.

Seat cover: previous version (cross section)

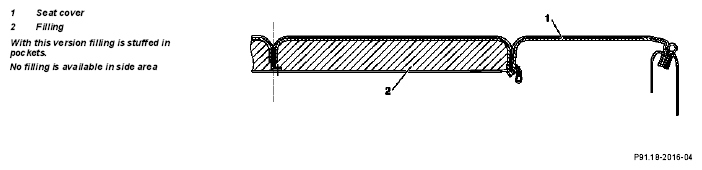

Fig 1: Identifying Seat Cover Previous Version

G04633084

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Matting: previous version

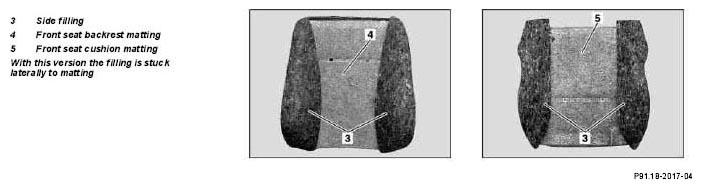

Fig 2: Identifying Matting Previous Version

G04633085

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

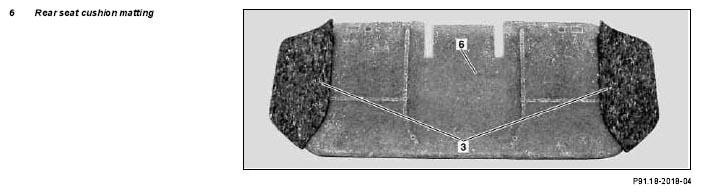

Fig 3: Identifying Rear Seat Cushion Matting

G04633086

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Seat cover: new version (cross section)

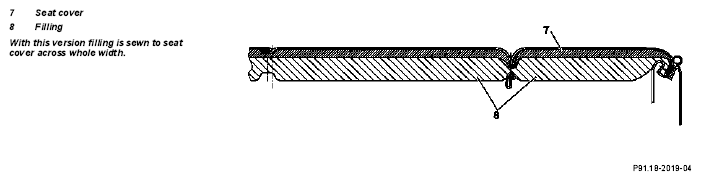

Fig 4: Identifying Seat Cover Version (Cross Section)

G04633087

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Matting: new version

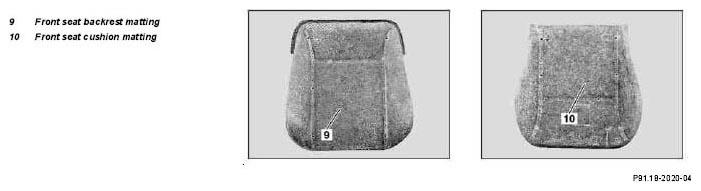

Fig 5: Identifying Front Seat Backrest Matting And Front Seat Cushion Matting

G04633088

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Front Seat Cushion

G04633089

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Possible repair versions on front seat and/or rear seat cushions and front seat backrests are:

New version seat cover on previous version matting
When combining new version seat covers (7) with previous version matting (4, 5 and 6), the lateral filling (3) must be separated from matting (4, 5 and 6).
Previous version seat cover on new version matting
When combining previous version seat covers (1) with new version matting (9, 10 and 11) lateral filling (3) must be separated from previous version matting (4, 5 and 6) and new version matting (9, 10 and 11) stuck in the appropriate places.
Rear seat backrest repair version
Changing previous version rear seat backrest cover or previous version matting of rear seat backrest is still only possible with a complete change, i.e. cover and matting must be renewed together.
