Retrofitting front door wiring harness - AN88.70-P-0001-02A

Fabricate door wiring harness for folding outside rearview mirror according to drawing.
Use 0.75mm ² yellow and 0.75mm ² green wires (wire length approx.1200 mm).

Before attaching sockets for door separation points (X35/1) and (X35/2) pull wires through bellows.

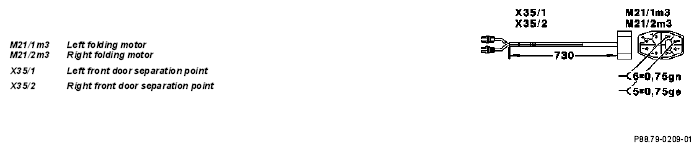

Fig 1: Identifying Fabricate Door Wiring Harness Drawing
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route contact pins on wiring harness according to figure at right parallel to wiring harness for outside mirror adjustment through bellows to left front door separation point connector (X35/1) or right front door separation point connector (X35/2) and fasten with clips (8).

Fig 2: Identifying Left/Right Front Door Separation Point Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Open connector housing (2) on left front door separation point connector (X35/1) or right front door separation point connector (X35/2), insert yellow wire into socket (1) and green wire into socket (15).
Close connector housing (2).
