Retrofitting frame/floor wiring harness - AN88.70-P-0001-01A

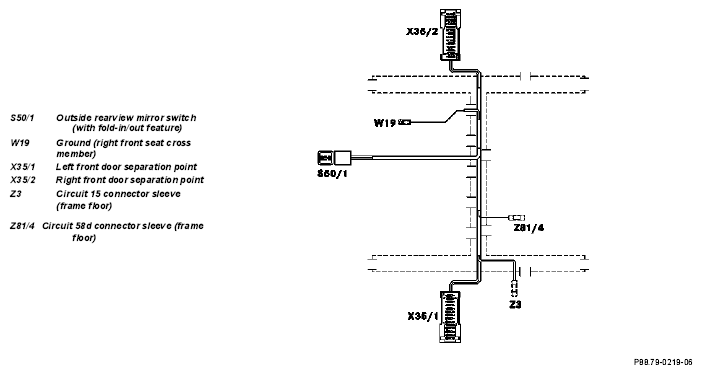

For wiring diagram, see "Electric wiring diagrams, model 210, volume 2, group 88".
- Route wiring harness for folding outside rearview mirror from switch (S50/1) in wiring duct to left front door separation point (X35/1) or right front door separation point (X35/2).
The colored markings on the wiring harness must coincide with those on the main wiring harness. They indicate where the wiring harness exits from the wiring ducts.
- Separate black/blue lead with larger diameter approx. 5 cm in front of circuit 15 connector sleeve (Z3). Strip insulation off of ends, twist together with black/blue lead (1) from folding outside rearview mirror wiring harness, solder and insulate with hot shrink tubing (2).
- Connect brown lead with end terminal to left front seat cross member ground point (W18) or right front seat cross member ground point (W19).
- Separate gray/blue lead with larger diameter approx. 5 cm in front of circuit 58d connector sleeve (Z81/4). Strip insulation off of ends, twist together with gray/blue lead (5) from folding outside rearview mirror wiring harness, solder and insulate with hot shrink tubing (6).
- Route tie-out for connector on outside rearview mirror switch (with fold-in/out feature) (S50/1) through opening (2) in cable duct.
- Complete cutout for outside rearview mirror switch (with fold-in/out feature) (S50/1) in cover next to shift lever or use new cover with switch cutout.
