Converting rear bumper - AZ88.00-P-0001-03F

Model 210 as of 1.6.99

Preparation

1. Remove standard rear bumper.
2. Remove inner element (1).
3. Remove Parktronic wiring harness (2) and impact damper (3).
4. Remove rails (4).
5. Remove antenna (7) as well as antenna mount (6).
6. Remove moldings (5).

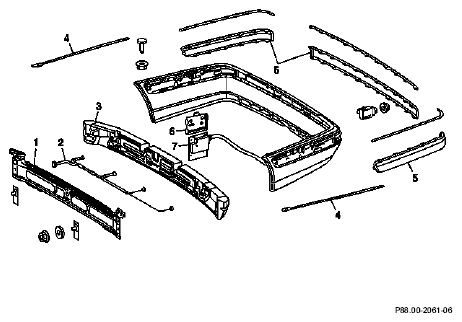

   Fig 1: Exploded View Of Rear Bumper

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Install wheelhouse seal (8) on left and right.
8. Reinstall bumper in opposite order.
   Fig 2: Identifying Wheelhouse Seal

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
   Fig 3: Identifying Wheelhouse Seal

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
