Converting outside rearview mirror - AN88.70-P-0001-03A

  1. Unscrew screws (2).
  2. Fold outside rearview mirror drive down.
  3. Pull off connector (3).
  4. Attach connector (3, 4) to new outside rearview mirror drive (folding).
  5. Attach outside rearview mirror drive.
  6. Screw in screws (2).

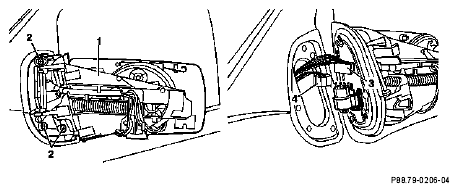

    Fig 1: Identifying Connector And Screws
    G04635016Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
