Converting front bumper - AZ88.00-P-0001-02F

Model 210 as of 1.6.99

Preparation

1. Remove standard front bumper.
2. Remove inner element (1).
3. Remove impact dampers (2) and Parktronic wiring harness (3).
4. Remove rails (4) and (5).
5. Remove fog lamp (11).
6. Remove towing bracket cover (9) and round cover plate (10) for headlamp cleaning system.
7. Remove license plate cover (8), moldings (6) and grille (7).

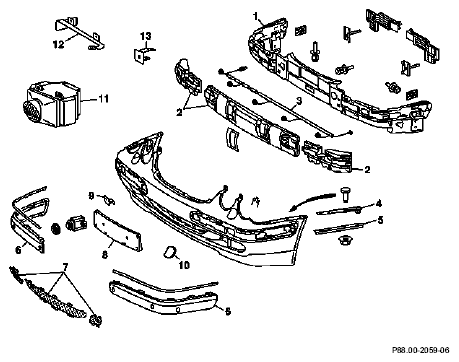

   Fig 1: Exploded View Of Front Bumper

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Assembly

8. Glue foil (14) onto temperature sensor retaining lug.
9. Reinstall bumper in opposite order.
