Retrofitting navigation processor for APS - AN82.61-P-7410-05I

Model 210.2

1. Remove molding on loading edge.
2. Loosen paneling (40) on load compartment cover and lift.
3. Drill passage hole (arrow), dia. 18 mm, in paneling.
4. Route tie-out to navigation processor from auto-pilot system wiring harness (1) and antenna extension wire (11) to load compartment.
   Fig 1: Identifying Auto-Pilot System Wiring Harness And Antenna Extension Wire

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Convert bracket for navigation processor (30) as shown in figure.
6. Drill mounting hole (31) with a 6.5 mm dia. bit.
   Fig 2: Identifying Mounting Hole

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Mark hole pattern for navigation processor according to figure and drill with 5.5 mm dia. bit.
8. Repaint bracket.

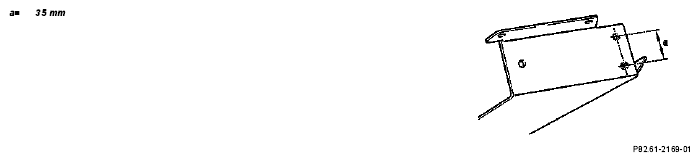

   Fig 3: Identifying Mounting Hole Dimension

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
9. Install navigation processor (A2/30) on bracket with 4 screws (32).
10. Connect wiring harness (1) and antenna.
11. Insert bracket according to figure, mark mounting holes (33) and drill.
12. Install bracket with short sheet metal screws.

    Insert sheet metal screws with sealant.

    Fig 4: Identifying Navigation Processor Bracket With Screws

    Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
