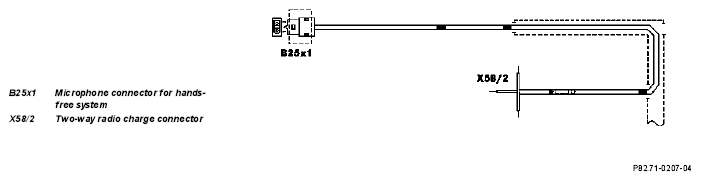

Retrofitting microphone wiring harness - AN82.71-P-0001-01A

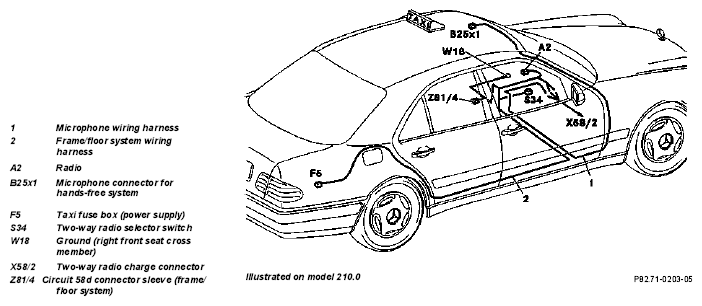

- Route wiring harnesses for hands-free system according to drawing and fasten to present wiring harnesses with cable straps.
The colored markings on the wiring harnesses indicate the exit points from the wiring ducts in the frame/floor assembly.
- Route wiring harness from cutout for overhead control panel above right A-pillar to two-way radio shaft and connect to two-way radio according to manufacturer's specifications if applicable.
