Retrofitting frame-floor system wiring harness - AN82.71-P-0001-02A

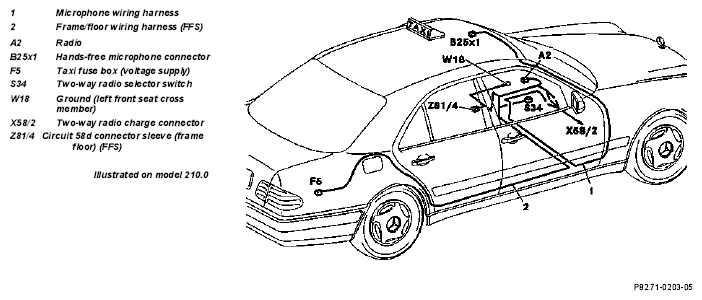

Fig 1: Identifying Frame-Floor System Wiring Harness Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Route rd/wt wire to taxi fuse box (power supply) and attach to fuse BII (F5).
   Fig 2: Identifying Fuse BII (1 Of 2)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
   Fig 3: Identifying Fuse BII (2 Of 2)

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Route 6-pin connector to center console switch group.
3. Route br/rd wire and ye wire to two-way radio shaft and if applicable connect to two-way radio according to manufacturer's specifications.
4. Route ye and ye/bk wire (1) to radio shaft and insert into radio connector (A2), connector (A) chamber 3.
5. On vehicles with telephone insert ye/bk wire from telephone wiring harness into two-pin radio mute/transmitter-receiver connector (X39/12) chamber 1.
6. Connect two-pin plug and two-pin connector (X39/12) and fasten to wiring harness with insulating tape.
   Fig 4: Identifying Two-Pin Radio Mute/Transmitter-Receiver Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Connect ground cable to ground point on left front cross member (W18).
   Fig 5: Connecting Ground Cable To Ground Point On Left Front Cross Member

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Separate gr/bl wire with larger diameter approx. 5 cm in front of end sleeve 58d (Z81/4), strip insulation off of ends, twist together with gr/bl wire (5) from frame/floor hands-free system wiring harness, solder an insulate with hot shrink tubing (6).
   Fig 6: Identifying Shrink Tubing

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

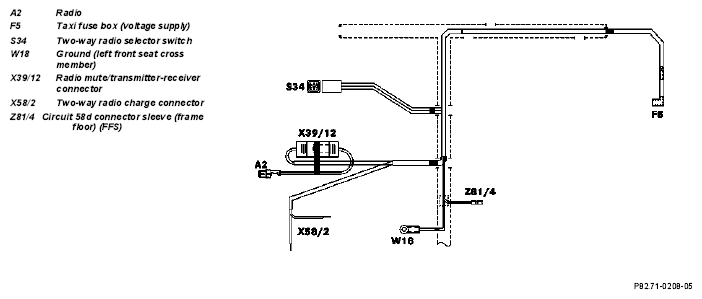

   Fig 7: Frame-Floor System Wiring Harness Diagram
