Retrofitting CD changer - AZ82.64-P-0001O

MODEL 210.2 from 1.7.98 to 30.6.99

with CODE (813b) Voice control system (VCS)

except CODE (347) TELE AID emergency call system (D2B)

except CODE (316) MB D-network car phone (D2B)

except CODE (351) auto-pilot system (APS)

only in combination with Audio 10 or Audio 30 radio

MODEL 210.2 as of 1.7.99

with CODE (352a) COMAND operating and display system

with CODE (353) Audio 30 APS

with CODE (813b) Voice control system (VCS)

except CODE (316) MB D-network car phone (D2B)

except CODE (347) TELE AID emergency call system (D2B)

in combination with all Audio series radios (except radio 5), COMAND or Audio 30 APS (only units with TN A 208 820 ... ...)

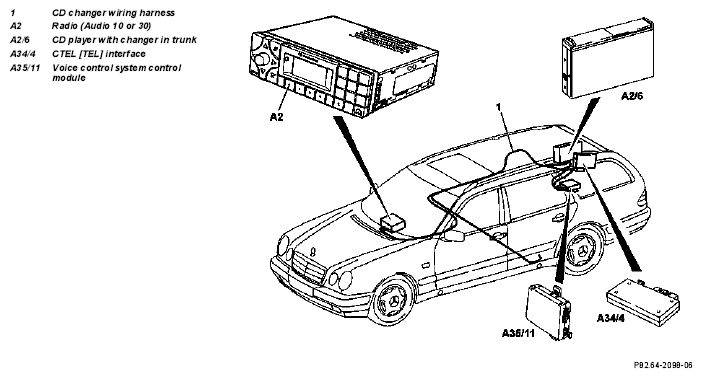

Fig 1: Identifying CD Changer Components Location - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on fiber optic cable	Model 129, 168, 170, 202, 208, 210, 220	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove left and right front seats	only on vehicles with permanently installed telephone (code 316) or TELE AID (code 347).
3	Remove radio
4	Lift floor covering at front left and right		AR68.20-P-2050F
5	Open left and right wiring ducts
6	Fold back rear seat
7	Remove luggage compartment trim on right
	Installing
	Notes on D2B ring	Determine actual configuration on model 210.2.	AH82.70-P-0001-03C
8	Install fiber optic cable module	For extending fiber optic cable ring.
			AR82.70-P-0004-01A
9	Expand D2B fiber optic cable wiring harness and retrofit power supply	on vehicles with portable cellular telephone (code 317) or voice control system (code 813b).	AZ82.64-P-0001-01G
	Covering fiber optic cable	Do not kink or stretch D2B fiber optic cable. Provide fiber optic cable connectors and equipment connectors with caps.	AR82.95-P-0005-01A
10	Retrofit CD changer in trunk		AZ82.64-P-0001-05C
11	Reassemble vehicle 7-1
12	Carry out commissioning and operational check	Code CD changer to vehicle with HHT.	*WH58.30-Z-1036-13A
13	Enable radio	Only when installing new radio

Commercially available tools

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99

Parts ordering notes

Part no.	Designation	Quantity
B6 782 27 71	CD changer	1
A000 540 38 08	Fiber optic cable module (order with length specification 540 mm)	as req.
A210 540 58 35	Power supply for CD changer on radio	1
A210 440 49 05	Power supply for CD changer on COMAND	1
KG82	Holder for CD changer	1
A036 545 07 28	D2B connector housing	1
