Retrofitting CD changer - AZ82.64-P-0001M

MODEL 210.2 from 1.7.98 to 30.6.99

with CODE (317) portable D-network cell phone (D2B)

except CODE (351) auto-pilot system (APS)

only in combination with Audio 10 or Audio 30 radio

MODEL 210.2 as of 1.7.99

with CODE (317) portable D-network cell phone (D2B)

with CODE (352a) COMAND operating and display system

with CODE (353) Audio 30 APS

in combination with all Audio series radios (except radio 5), COMAND or Audio 30 APS (only units with TN A 208 820 ... ...)

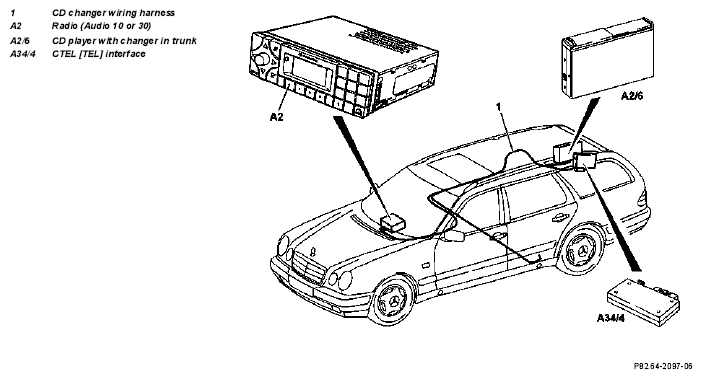

Fig 1: Identifying CD Changer Components Location - Model 210.2

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on fiber optic	Models 129, 168, 170, 202, 208, 210, 220.	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove left and right front seats	only on vehicles with permanently installed telephone (code 316) or TELE AID (code 347).
3	Remove radio
4	Lift floor covering at left front and right		AR68.20-P-2050F
5	Open left and right wiring ducts
6	Fold away rear seat
7	Remove paneling in load compartment on right
	Install
	Notes on D2B ring	Determine current configuration in vehicle: on model 210.2.	AH82.70-P-0001-03C
8	Install optical wave guide module	For extension of optical wave guide ring.
			AR82.70-P-0004-01A
9	Expand D2B fiber optic cable wiring harness and retrofit power supply.	on vehicles with portable cellular telephone (code 317) or voice control system (code 813b).	AZ82.64-P-0001-01G
	Cover optical wave guide	Do not kink or stretch D2B fiber optic.  Fit caps to fiber-optic cable connector and device connector.	AR82.95-P-0005-01A
10	Retrofit CD changer in trunk		AZ82.64-P-0001-05C
11	Fit remaining parts to vehicle 7-1
12	Perform startup and function check	Code CD changer to vehicle with HHT.	*WH58.30-Z-1036-13A
13	Enable radio	Only when installing new radio
