Retrofitting CD changer - AZ82.64-P-0001C

MODEL 210.2 from 1.7.98 to 30.6.99

except CODE (316) MB D-network car phone (D2B)

except CODE (317) portable D-network cell phone (D2B)

except CODE (347) TELE AID emergency call system (D2B)

except CODE (351) auto-pilot system (APS)

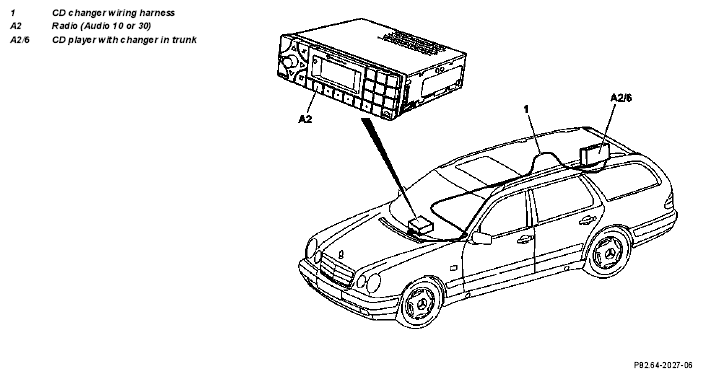

only in combination with Audio 10 or Audio 30 radio

MODEL 210.2 as of 1.7.99

with CODE (352a) COMAND operating and display system

with CODE (353) Audio 30 APS

except CODE (316) MB D-network car phone (D2B)

except CODE (317) portable D-network cell phone (D2B)

except CODE (347) TELE AID emergency call system (D2B)

in combination with all Audio series radios (except radio 5), COMAND or Audio 30 APS (only units with TN A 208 820 ... ...)

	Notes on fiber optic	Models 129, 168, 170, 202, 208, 210, 220.	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove left and right front seats
3	Remove radio
4	Lift floor covering at left front and right		AR68.20-P-2050F
5	Open left and right wiring ducts
6	Fold away rear seat
7	Remove paneling in load compartment on right
	Install
8	Retrofit D2B wiring harness for CD changer		AZ82.64-P-0001-01C
	Cover optical wave guide	Do not kink or stretch D2B fiber optic.  Install covers on fibre-optic coupling and equipment connector.	AR82.95-P-0005-01A
9	Retrofit CD changer in trunk		AZ82.64-P-0001-05C
10	Fit remaining parts to vehicle 7 - -1
11	Perform startup and function check	Code CD changer to vehicle with HHT.	*WH58.30-Z-1036-13A
12	Enable radio	Only when installing new radio

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99

Part no.	Designation	Quantity
Group 82 (see EPC)	CD changer	1
Group 82 (see EPC)	D2B wiring harness for CD changer	1
Group 82 (see EPC)	Power supply for CD changer on radio	1
Group 82 (see EPC)	Power supply for CD changer on COMAND	1
Group 82 (see EPC)	Holder for CD changer	1
