Retrofit xenon headlamps - AN82.10-P-0001FF

MODEL 210 up to 30.6.99

In vehicles up to vehicle identification end no. 210 1A 18 000 the mounting bracket (arrow) on the right front transverse control arm may be missing. With these vehicles, the transverse control arm must be replaced and the vehicle then aligned.

Fig 1: Identifying Mounting Bracket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

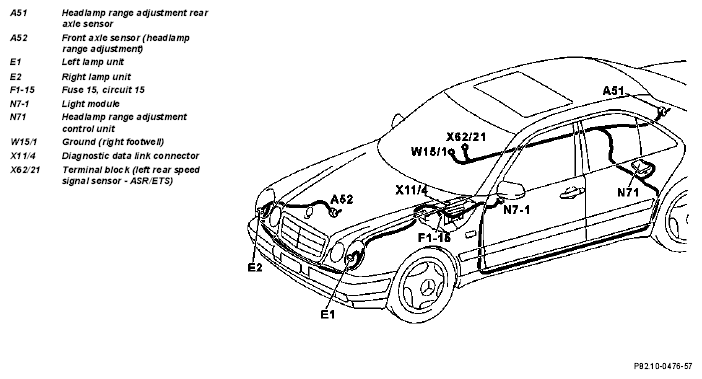

Fig 2: Identifying Xenon Headlamps Components Location - Model 210 Up To 30.6.99

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210 right-hand drive sedan

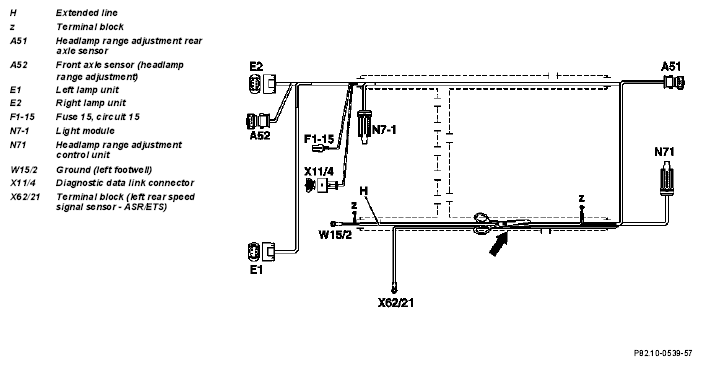

Fig 3: Identifying Xenon Headlamps Components Location - Model 210 Right-Hand Drive Sedan

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
	Risk of death  caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire  due to highly flammable materials in the area of damaged xenon bulbs Risk of injury  from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning  from inhaling mercury vapors and from swallowing/skin contact with poisonous salts and mercury compounds	Do not come into contact with parts that are under high voltage. Persons with active electronic implants  (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure the work area is adequately ventilated.	AS82.10-Z-0001-01A
	Retrofit xenon headlamps	Model 129, 140, 202, 210, 220	AH82.10-P-1003-01A
1	Disconnect ground line of battery
			AR54.10-P-0003A
2.1	Fold forward rear seat cushions	Model 210.2 only
2.2	Remove rear seat cushion	Model 210.0 only
	Remove/install rear seat and rear seat backrest	Only remove rear seat cushion.	AR91.12-P-1700F
3	Remove lower paneling from left A-pillar
4	Remove lower paneling from left and right B-pillars
5	Remove left front carpeting
6	Remove door sill moldings from left and right front and rear door
7	Open left and right cable duct cover
8	Remove left footrest
9	Remove light module
			AR54.25-P-3260A
10.1	Unfasten windshield washer fluid reservoir and place to one side
11	Remove headlamp
			AR82.10-P-4730EB
12	Remove air filter housing
13	Slacken coolant expansion reservoir and place to the side	Do not disconnect coolant hose.
14	Remove plastic protective grille in front of condenser	If installed.
15	Remove engine compartment paneling at bottom or soundproofing
	Install
16	Install headlamp range adjustment wiring harness		AN82.10-P-0002-03FF
17	Retrofit headlamp range adjustment rear axle sensor		AN82.10-P-0003-01FF
18	Retrofit headlamp range adjustment front axle sensor		AN82.10-P-1000-01FF
19	Retrofit headlamp cleaning system	See installation instructions.	AN82.15-P-0001A
20	Install in the reverse order	Operation step 15 -1
21	Carry out function check
22	Check headlamp adjustment	Do not switch on light, risk of being dazzled!
23	Set zero position of headlamps using HHT	refer to Diagnosis Manual, Body
24	When modifying the package, subsequently enter code or designation of corresponding special equipment on vehicle data card and FDOK	Code 612
