Retrofit optical wave guide cable harness - AN82.70-P-0002-01A

Model 210.0

1. Prepare optical wave guide wiring harness (1) as shown in figure.

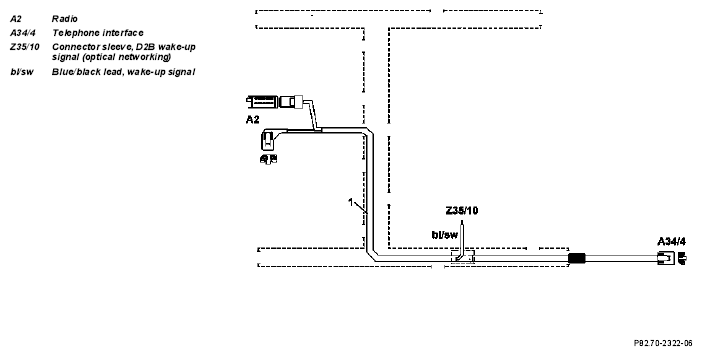

   Fig 1: Optical Waveguide Wiring Harness Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Route wiring harness (1) along existing leads in the vehicle as shown in figure.

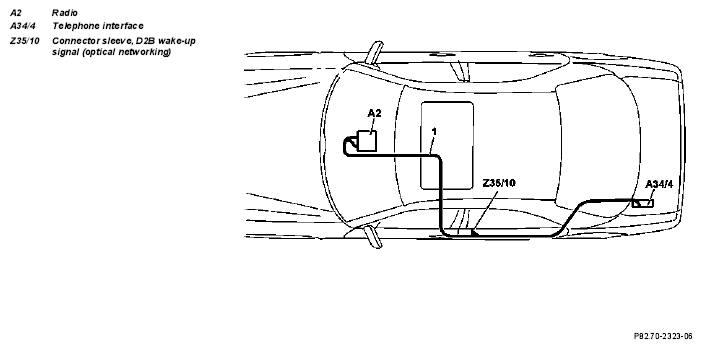

   Fig 2: Identifying Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Route optical wave guide wiring harness (1) in accordance with figure along exist lines from trunk to left B-pillar.

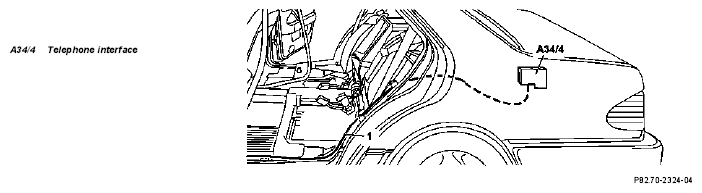

   Fig 3: Identifying Telephone Interface

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Insert blue/black cable (bl/sw) from wiring harness (1) as connector sleeves for the wake-up signal (Z35/10) to the cable duct at the left B-pillar (soldered together later with telephone cable kit).
   Fig 4: Identifying Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Route branch-off line from optical wave guide wiring harness (1) to radio (A2) in cable duct under front passenger's seat as shown in figure and fasten in place using felt.

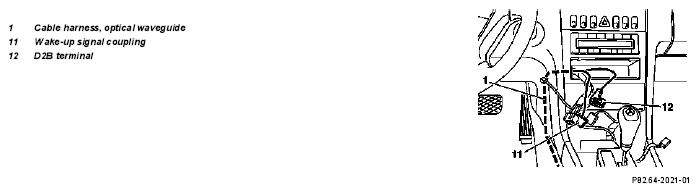

   Fig 5: Identifying Branch-Off Line From Optical Waveguide Wiring Harness To Radio

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Route branch-off lines to radio in radio recess.
   Fig 6: Identifying Branch-Off Lines To Radio

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
