Retrofit antenna - AN82.62-P-0001-02B
| Number | Designation | Model 210.2 | |
|---|---|---|---|
| BA82.62-P-1001-01A | Bolt/nut of antenna base to vehicle roof | Nm | 3 |

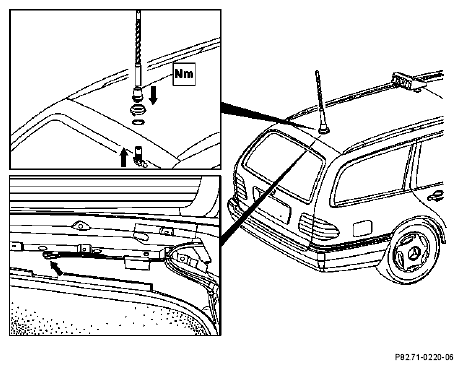

- Install antenna base as per the drawing.
Pay attention to tightening torque.
Observe installation position of connection for antenna splitter line (arrow).
- Fasten antenna on antenna base using antenna wrench.
- Place antenna wrench into glove compartment.
