Coolant/washer fluid level indicator test electrics IC - AD54.30-P-6000-03E

Models 170, 202, 210

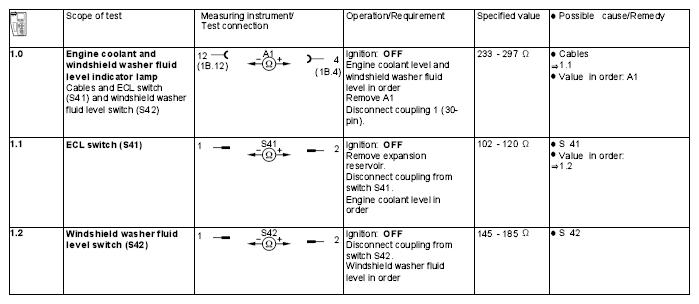

Fig 1: Coolant/Washer Fluid Level Indicator Test Electrics IC

G04633366

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
