Replacing rear mount of lower wishbone - AR33.20-P-0527K

MODEL 208

Fig 1: Identifying Rear Mount Of Lower Wishbone Components

Removal of hydraulic mount

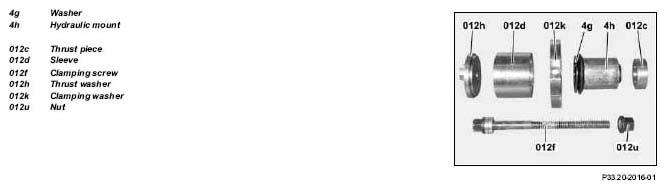

Fig 2: Identifying Hydraulic Mount Components (1 Of 2)

Installation of hydraulic mount

Fig 3: Identifying Hydraulic Mount Components (2 Of 2)

	Removing
1	Remove lower wishbone (4)		AR33.20-P-0510B
2	Clamp wishbone (4) in vise.	Use aluminum jaws

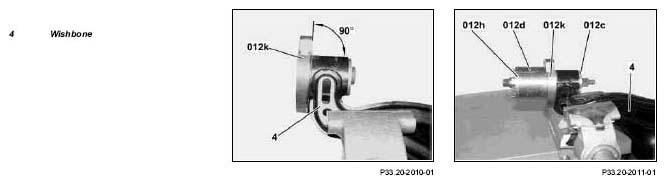

3	Mount clamping washer (012k) part 1 between wishbone eye and rubberized stop ring (collar)		Fig 4
		The clamping washer must be at an angle of 90° to the wishbone eye
4	Insert sleeve (012d) part 2 in clamping washer (012k) part 1
5	Mount thrust washer (012h) part 4 and thrust piece (012c) part 3	The straight pins of the thrust washer (012h) part 4 point outwards
6	Remove hydraulic mount (4h)
	Installing
7	Clean mounting bore for hydraulic mount in wishbone	Do not use any oil, lubricant or grease containing acid.
8	Insert hydraulic mount (4h) in the wishbone from behind (viewed in direction of travel)	The parallel surfaces (arrow) of the bearing core must be at an angle of 90° to the center weld seam of the wishbone. In the installed position when unladen the bearing core is offset towards the center of the vehicle by the dimension "a"
9	Draw in hydraulic mount (4h) up to the stop with thrust washer (012h) part 4 and thrust washer (012e) part 5	The straight pins of the thrust washer (012h) part 4 point inwards.	Fig 4
10	Press on washer (4g) flush with bearing core with thrust washer (012e) part 5 and thrust piece (012e) part 3		Fig 4
11	Install lower wishbone (4)		AR33.20-P-0510B

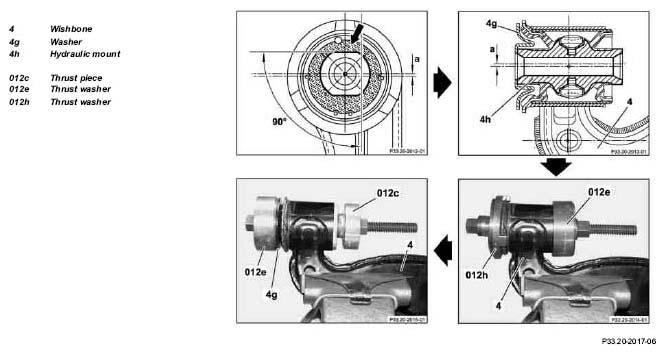

Fig 4: Identifying Removal And Installation Tool (208 589 00 43 00)
