Remove/install roll bar - AR91.50-P-2355KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

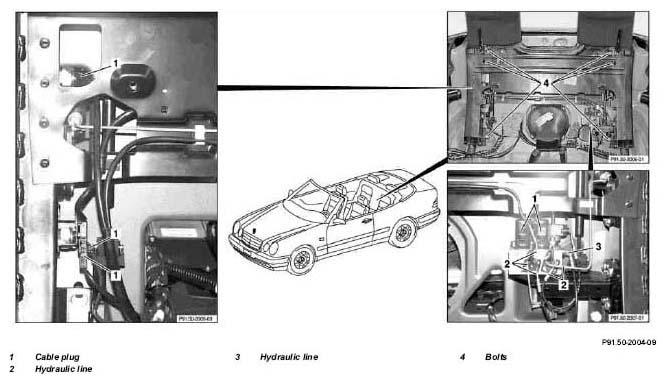

Fig 1: Identifying Roll Bar Remove/Install Components

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	No parts of the body or limbs should be within the operating range of the mechanism when components are in motion.	AS00.00-Z-0009-01A
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  caused by swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Injury hazard  from roll bar extending	Extend roll bar before working in the roll bar area	AS91.00-Z-0003-01KA
1	Remove rear seat and rear seat backrest		AR91.12-P-1700KA
2	Completely open soft top
3	Completely move up rollover bar	See Owner's Manual.
4	Separate cable plug (1)
5	Separate hydraulic lines (2)	Immediately plug hydraulic lines with plugs
		, plug connections on the valve unit with blind plugs .
		Stop plug no. -07	Fig 2
		Blind plug no. -01	Fig 2
6	Unscrew hydraulic line (3)	Immediately plug hydraulic line with plugs , plug connections on the valve unit with blind plus .
		Stop plug no. -08	Fig 2
		Blind plug no. -09	Fig 2
7	Remove bolts (4)		*BA91.50-P-1001-01A
8	Remove rollover bar	Avoid damage on paint and paneling parts
9	Install in the reverse order
10	Bleed hydraulic system		AR77.37-P-1000-03KA
11	Check oil level of hydraulic system	if necessary add oil through oil filler screw ↓
		See operating sheet specifications	BB00.40-P-0343-00A
		Oil filler plug	*BA77.37-P-1003-01C
12	Check for proper function and leakage

HYDRAULIC CONVERTIBLE TOP

ROLL BAR MECHANISM

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)
