Replacing bulbs on pushbutton control module for air conditioning (automatic) - AR83.40-P-6352F

MODEL 129, 140, 202, 208, 210 with CODE (581a) Air conditioning (automatic)

Illustrated on model 210

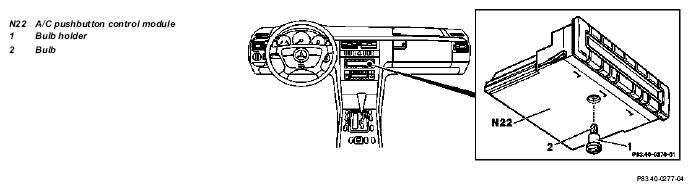

Fig 1: Identifying A\C Pushbutton Control Module, Bulb Holder And Bulb

	Removal, installation
1	Remove pushbutton control module	For this purpose press in radio removal plates
2	Turn bulb holder (1) 90° to left and remove	One or two bulb holders are installed depending on the control module manufacturer
3	Pull bulb (2) out of bulb holder (1)
4	Reinstall in opposite order
