Removing, replacing and installing coolant circulation pump - AR83.25-P-1170K

MODEL 208

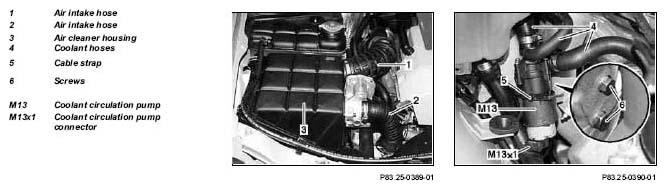

Fig 1: Identifying Coolant Circulation Pump Remove/Install Components

	Removal, installation
1	Remove air intake hose (1, 2)
2	Remove air cleaner housing (3)
3	Clamp off coolant hoses (4) with clamp		Fig 2
4	Remove coolant hoses (4)
5	Disconnect cable strap (5) and pull off coolant circulation pump connector (M13x1)	Installation:  Replace cable strap.
6	Unscrew screws (6) and remove coolant circulation pump (M13)
7	Reinstall in opposite order

Fig 2: Identifying Clamp (000 589 40 37 00)
