Removing and installing condenser - AR83.30-P-6540K

MODEL 208 with CODE (580) Air conditioning or, for USA, Tempmatic with CODE (581a)Automatic air conditioning

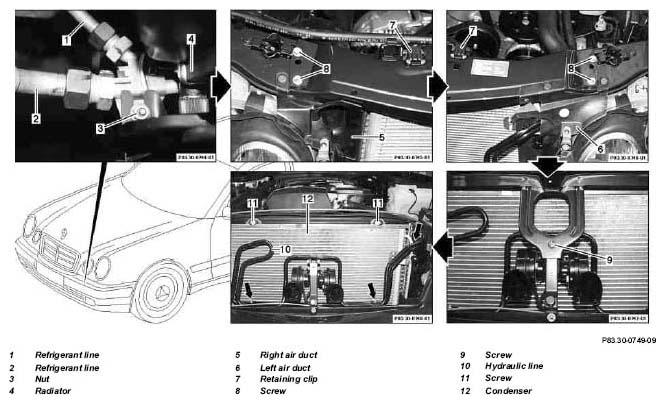

Fig 1: Identifying Condenser Remove/Install Components

	Removal, installation
	In the event of malfunctions to the air conditioning, resulting from leakage, contamination or icing up always install new receiver/drier when replacing or repairing A/C compressor.
1	Drain air conditioning (recycle), evacuate, charge, check for leakage	Add quantity of compressor oil evacuated to refrigeration circuit when charging air conditioning
2	Remove bottom engine compartment paneling
3	Unscrew refrigerant lines (1 and 2) from connector		*BA83.30-P-1005-01A
			*BA83.30-P-1006-01A
4	Loosen nut (3) and unhook connector from holder upward
5	Remove right air duct (5)
6	Remove left air duct (6)
7	Unclip retaining clips (7)	2 each
8	Unscrew screw (8)	4 each
9	Unscrew screw (9)
10	Unhook hood pull cable from radiator cross member and remove radiator cross member
11	Unscrew screws (arrows) and pivot hydraulic line (10) to side
13	Unscrew screws (11)
14	Remove radiator (4) from bottom mounts and push toward engine	For better access to condenser
15	Remove condenser (12) upward together with lower air duct
16	Unclip condenser (12) from air duct
17	Reinstall in opposite order
18	Replace receiver/drier	Installation:  When replacing the receiver/drier add 10 cm 3 of new compressor oil	AR83.30-P-6520E
