Removing and installing water drain trough - AR77.20-P-2600K

MODEL 208.3

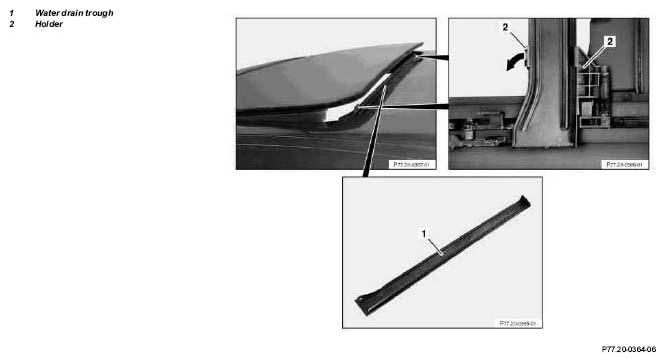

Fig 1: Identifying Water Drain Trough Remove/Install Components

	Removal, installation
1	Move sliding/pop-up roof to pop-up position and slide lining toward rear
2	Unclip water drain trough (1) from holder (2) from inside with water pump pliers and remove	To remove press holder (2) down
3	Reinstall in opposite order
4	Check sliding/pop-up roof for proper function
