Removing and installing trunk luggage cover limit switch - AR77.39-P-3695KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

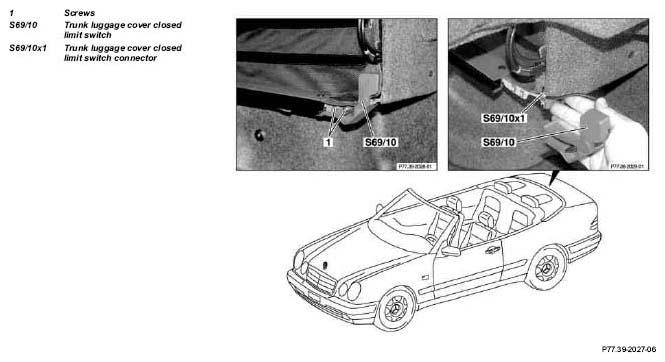

Fig 1: Identifying Trunk Luggage Cover Limit Switch Remove/Install Components
G04729550
Fig. item, etc. Work instructions
S69/10 Removing and installing trunk luggage cover limit switch IMPORTANT Unscrew screws (1), disconnect trunk luggage cover closed limit switch connector (S69/10x1)
