Removing and installing soft top seal on soft top compartment cover - AR77.30-P-3355KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

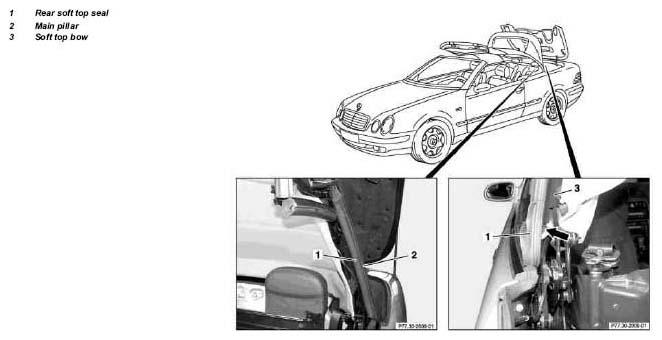

Fig 1: Identifying Soft Top Seal On Soft Top Compartment Cover Remove/Install Components

	Removing
1	Release soft top at front	Set up soft top frame at front
2	Pull seal (1) on main pillar (2) on left and right out of roof frame channel
3	Set up soft top bow (3)	Fold front soft top frame to front
4	Pull seal (1) out of clamping channel on soft top bow (3)	Seal can tear
	Installing
5	Coat seal with rubber assembly fluid		*BR00.45-Z-1010-06A
6	Hook seal (1) in clamping channel on left and right main pillar (2) at top
7	Press seal (1) in clamping channel on left and right main pillar (2)
8	Fold up soft top bow (3)	Fold front soft top frame to front
9	Press seal (1) into clamping channel of soft top bow (3)	Align sealing lip (arrow) of seal along edge of soft top bow

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Antifriction agent	A 000 989 03 67
