Removing and installing soft top lock on windshield frame - AR77.33-P-1007KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

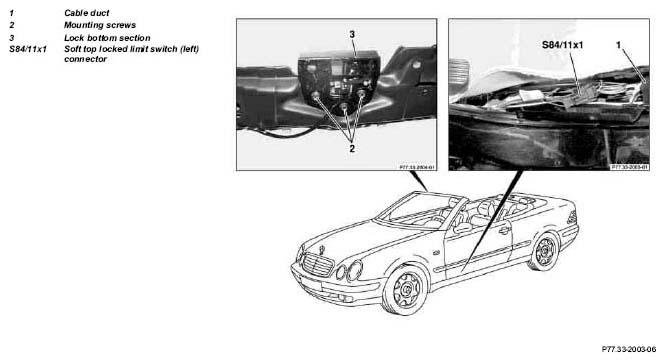

Fig 1: Identifying Soft Top Lock On Windshield Frame Remove/Install Components

	Removing, installing
1	Completely open soft top
2	Remove A-pillar paneling at inside left		AR68.30-P-4050K
3	Remove left front door seal
4	Remove left door sill molding
5	Open wiring duct (1) in area of A-pillar
6	Disconnect soft top bow locked limit switch connector (S84/11x1)
7	Unscrew mounting screws (2) from lock bottom section (3)	Mark position of lock bottom section (3), facilitates assembly
			*BA77.33-P-1003-01C
8	Install in the reverse order

SOFT TOP - MECHANICAL SYSTEM

Number	Designation		Model 208.4
BA77.33-P-1003-01C	Screw for lock bottom section on windshield frame	Nm	8
