Removing and installing soft top bow down/up limit switch - AR77.39-P-3700KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

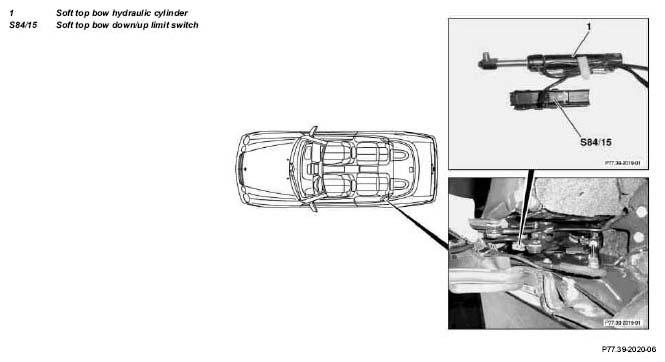

Fig 1: Identifying Soft Top Bow Down/Up Limit Switch Remove/Install Components

Fig. item, etc.	Work instructions
1	Remove soft top bow hydraulic cylinder from main bearing together with hydraulic lines connected	Left side of vehicle only Refer to:↓
		Removing and installing hydraulic cylinder for soft top bow	AR77.37-P-4190KA
S84/15	Unclip soft top bow down/up limit switch from hydraulic cylinder	Disconnect soft top bow down/up limit switch connector (S84/15x1) in area of rear side paneling
